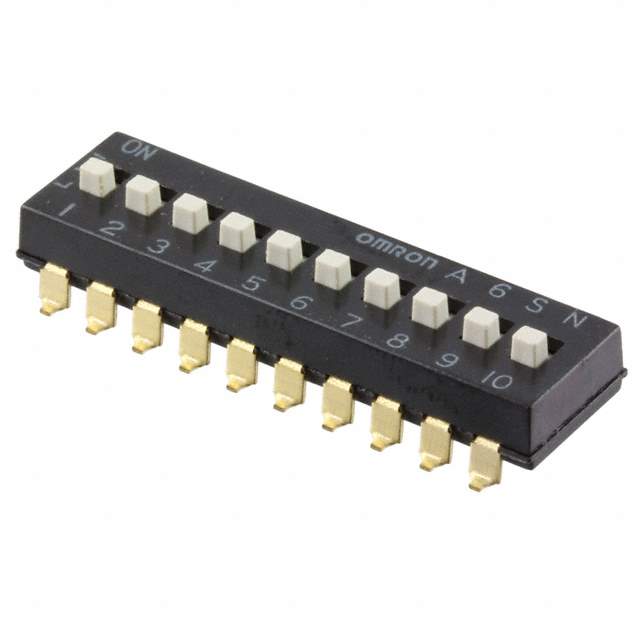

A6SN-0104-R100 Real Image
Same model may have multiple batches, images only for reference.

A6SN-0104-R100

Part No A6SN-0104-R100
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6SN
Package Tape & Reel
Circuit SPST
Number of Positions 10
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Height Above Board 0.214" (5.45mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm) , Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Length 1.076" (27.34mm)
Electrical Life 1,000 Cycles
Base Product Number A6SN
Standard Package 700
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1350015-A6SN-0104-R100
Ultra Librarian 3D Model Ultra Librarian A6SN-0104-R100 CAD Model

Description

The Omron A6SN series is a slide DIP switch with 10 positions and a pitch of 0.100" (2.54mm).

  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Circuit: SPST
  • Actuator Type: slide (standard)
  • Actuator Level: raised
  • Washable: yes
  • Mounting: surface mountable
  • Termination: gull-wing
  • Temperature Range: -30°C to 85°C
