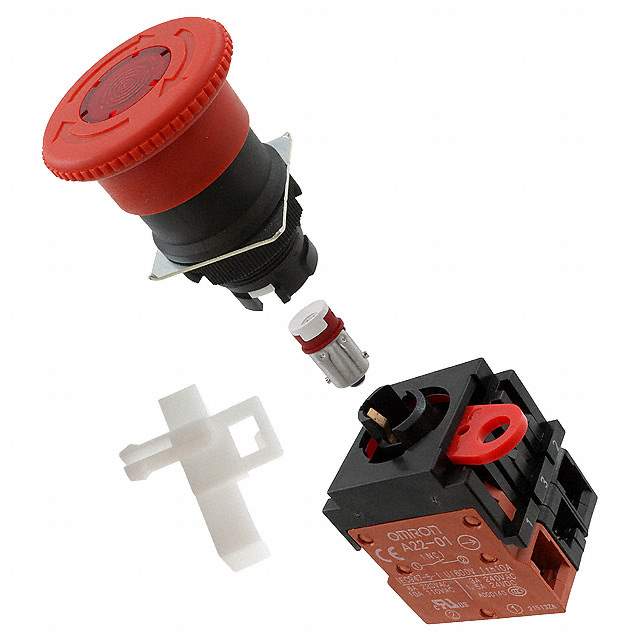

A22EL-M-12A-11 Real Image
Same model may have multiple batches, images only for reference.

A22EL-M-12A-11

Part No A22EL-M-12A-11
Manufacturer Omron
Catalog Pushbutton Switches
Description Switch Emergency Stop N.O./N.C. SPST/SPST Mushroom Button 10A 440VAC 380VDC Screw Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current Rating 10 A
Electrical Life 300 kcycles
Illumination Type LED
Lead Free Lead Free
Max Operating Temperature 55 °C
Mechanical Life 300 kcycles
Min Operating Temperature -20 °C
Mount Front, Panel
Packaging Bulk
Ratings Dust Tight, IP65, Water Resistant
RoHS Compliant
Termination Screw
Throw Configuration DPST, SPST
Voltage Rating (AC) 110 V
Voltage Rating (DC) 24 V
Win Source Part Number 1229952-A22EL-M-12A-11
Categories Pushbutton Switches
Manufacturer Omron
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian A22EL-M-12A-11 CAD Model

Description

The 1229952-A22EL-M-12A-11 pushbutton switch is a high-quality and reliable component that is designed to meet the needs of a wide range of electronic applications manufactured by Omron.

  • Packaging: Bulk
  • Termination: Screw
  • Current Rating: 10 A
  • Rating: Dust Tight, IP65, and Water-Resistant
  • Electrical and Mechanical Life: 300 kcycles
  • Illumination Type: LED
  • Category: Pushbutton Switches
  • Alternative Parts: A22EL-M-12-A-11 and A22ELM12A11
  • Lead-Free: Yes
  • Mount Style: Front Panel
  • RoHS: Compliant
  • Voltage Rating: 110 V (AC) and 24 V (DC)
  • Throw Configuration: DPST and SPST
  • Operating Temperature Range: -20 °C to 55 °C
