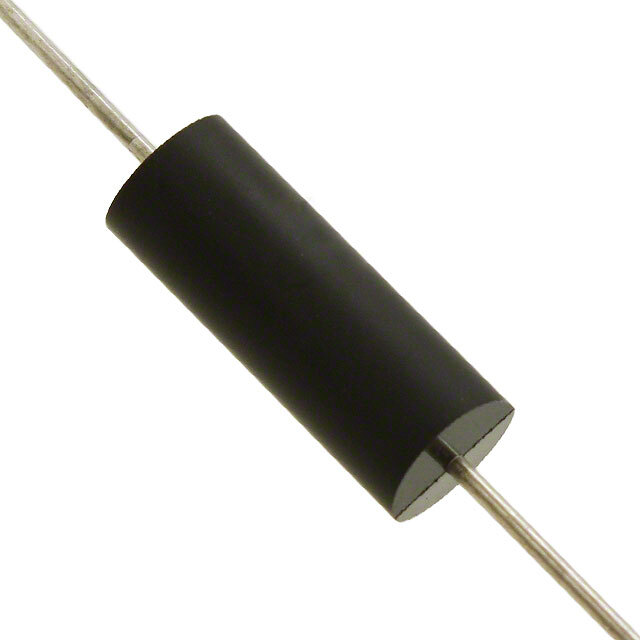

Same model may have multiple batches, images only for reference.
WHD560FET Ohmite – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

WHD560FET

Part No WHD560FET
Manufacturer Ohmite
Catalog Through Hole Resistors
Description RES 560 OHM 1% 3W AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 560 Ohms
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.217" Dia x 0.533" L (5.50mm x 13.54mm)
Number of Terminations 2
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1597624-WHD560FET
Ultra Librarian 3D Model Ultra Librarian WHD560FET CAD Model

Description

N
