Products specifications

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series Slim-Mox
Package Bulk
Resistance 500 mOhms
Tolerance ±1%
Power (Watts) 1.5W
Composition Thick Film
Features High Voltage, Non-Inductive
Temperature Coefficient 100ppm/°C
Temperature Range - Operating -55°C ~ 110°C
Package / Case Radial
Supplier Device Package Radial
Dimension 1.080" L x 0.100" W (27.43mm x 2.54mm)
Height - Seated (Max) 0.340" (8.64mm)
Number of Terminations 2
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Other Names SM104035006FE-ND,SM104FE-500M
Standard Package 100
Win Source Part Number 1192009-SM104035006FE
Ultra Librarian 3D Model Ultra Librarian SM104035006FE CAD Model

Description

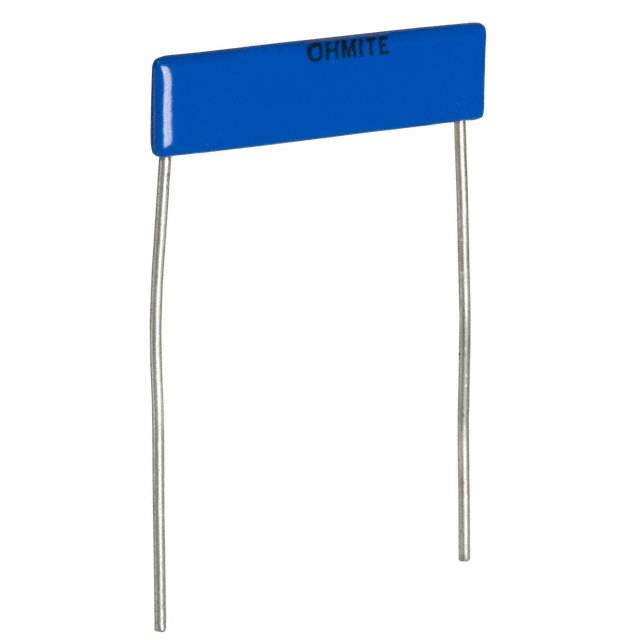

The Ohmite Slim-Mox series resistor is a high voltage, non-inductive thick film composition resistor with a resistance of 500 mOhms and a power rating of 1.5W.

  • Resistance: 500 mOhms
  • Power Rating: 1.5W
  • Tolerance: ±1%
  • Temperature Coefficient: 100ppm/°C
  • Package/Case: Radial
  • Supplier Device Package: Radial
  • Height Seated (Max): 0.340" (8.64mm)
  • Dimension: 1.080" L x 0.100" W (27.43mm x 2.54mm)
  • Mounting Type: Through Hole
