Same model may have multiple batches, images only for reference.

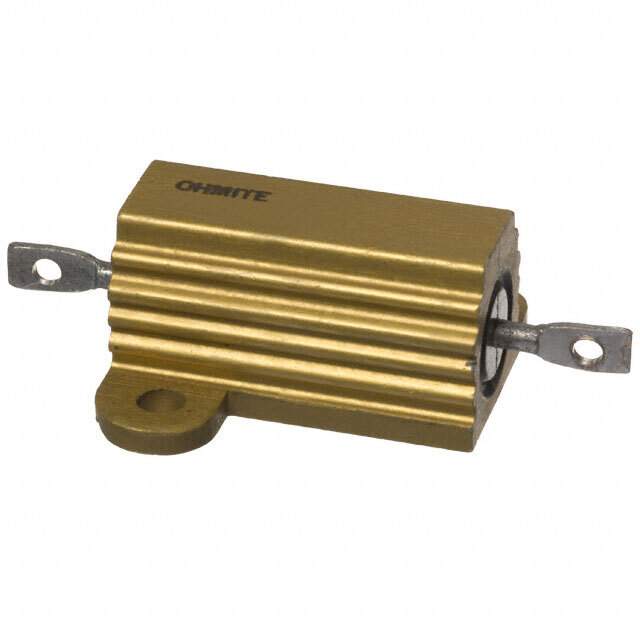

HS25 250R F Real Image
Same model may have multiple batches, images only for reference.

HS25 250R F

Part No HS25 250R F
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 250 OHM 1% 25W / 250 Ohms ±1% 25W Wirewound Chassis Mount Resistor
Datasheet
HS25 250R F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Ohmite
Series ARCOL, HS
Package Bulk
Resistance 250 Ohms
Tolerance ±1%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±100ppm/°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 1.075" L x 0.559" W (27.30mm x 14.20mm)
Height - Seated (Max) 0.583" (14.80mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names HS25250RF,HS25250RF-ND,2485-HS25250RF,HS25 250R F-ND
Standard Package 40
Win Source Part Number 1063475-HS25 250R F
Ultra Librarian 3D Model Ultra Librarian HS25 250R F CAD Model

Description

The HS25 250R F is a chassis mount resistor with a Win Source Part Number of 1063475, belonging to the ARCOL, HS series, and falling under the category of resistors>chassis mount resistors.

  • Power Rating: 25W
  • Resistance: 250 Ohms
  • Tolerance: ±1%
  • Mounting Feature: Flanges
  • Composition: Wirewound
  • Dimension: 1.075" L x 0.559" W (27.30mm x 14.20mm)
  • Temperature Coefficient: ±100ppm/°C
