TDF8532HH/N3Y

Part No TDF8532HH/N3Y
Manufacturer NXP / Nexperia
Catalog Linear - Amplifiers - Audio

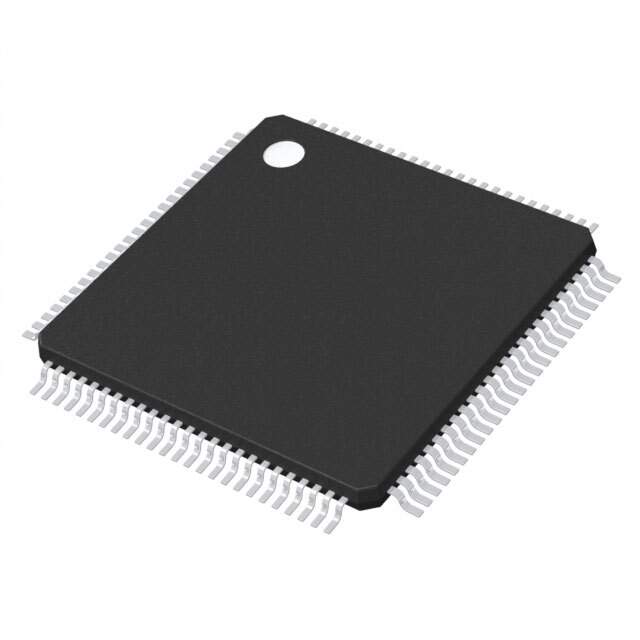

Description IC AMPLIFIER CLASS D 100HLQFP / Amplifier IC 4-Channel (Quad) Class D 100-HLQFP (14x14)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Linear - Amplifiers - Audio
Mfr NXP USA Inc.
Series TDF
Package Tape & Reel (TR)
Type Class D
Output Type 4-Channel (Quad)
Max Output Power x Channels @ Load 80W x 4 @ 2Ohm
Voltage - Supply 5.5V ~ 25V
Mounting SMD (SMT)
Supplier Device Package 100-HLQFP (14x14)
Package / Case 100-FQFP Exposed Pad
Base Product Number TDF8532
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
Other Names 568-TDF8532HH/N3YTR,935385378518
Standard Package 1,000
Win Source Part Number 1014398-TDF8532HH/N3Y
Ultra Librarian 3D Model Ultra Librarian TDF8532HH/N3Y CAD Model

Description

The NXP TDF8532HH/N3Y is a high-performance, class-D audio amplifier that is designed for use in a wide range of automotive and consumer audio applications. This advanced amplifier is part of NXP's renowned audio solutions, providing exceptional sound quality with high efficiency and reliability.

Key Features

  • High Efficiency: The TDF8532HH/N3Y operates with a class-D architecture, ensuring high power efficiency, which reduces energy consumption and heat dissipation, making it ideal for compact and in-car audio systems.
  • Power Output: This amplifier can deliver up to 4 x 50W of output power, providing robust audio performance for a superior listening experience.
  • Low Distortion: It offers low THD+N (Total Harmonic Distortion + Noise), which ensures clear and precise sound reproduction, maintaining the integrity of the audio signal.
  • Multi-Channel Support: With its quad-channel configuration, the TDF8532HH/N3Y can drive multiple speakers, allowing for versatile audio system designs.
  • Advanced Diagnostics: The integrated diagnostic features facilitate system monitoring and protection, contributing to the overall durability and longevity of the audio system.
  • I2C Bus Control: The inclusion of I2C bus control interface enables ease of integration and flexible control over the audio system's settings and functions.

Applications

The TDF8532HH/N3Y is ideally suited for a variety of applications, including:

  • Car audio systems
  • Home theater systems
  • Powered speaker systems
  • Public address systems

Quality and Reliability

NXP is known for its commitment to quality, and the TDF8532HH/N3Y is no exception. Designed with automotive-grade components, it meets stringent industry standards for performance and reliability, ensuring that it can withstand the rigors of daily use in challenging environments.

In conclusion, the NXP TDF8532HH/N3Y is a versatile and powerful audio amplifier that offers exceptional performance for any high-fidelity audio application. Its combination of efficiency, power, and advanced features make it a top choice for audio enthusiasts and professionals alike.
