Product Overview: TDA8920CJ/N1 by NXP Semiconductors

The TDA8920CJ/N1 is a high-fidelity audio power amplifier from NXP Semiconductors, designed to deliver exceptional sound quality for a range of audio applications. This integrated circuit is part of the CLASS-D amplifier family, renowned for its high efficiency and low heat dissipation, making it an ideal choice for compact audio systems where space and power conservation are critical.

With its advanced silicon technology, the TDA8920CJ/N1 offers a powerful output of up to 2 x 100 W into a 4-ohm load, and 2 x 50 W into an 8-ohm load, ensuring that it can drive a wide variety of speakers with ease. The amplifier operates over a wide supply voltage range, typically from ±12.5 V to ±32.5 V, providing designers with flexibility in power supply design.

One of the key features of the TDA8920CJ/N1 is its high efficiency, which can reach up to 90%. This not only reduces the energy consumption but also minimizes the need for heat sinks, thus enabling a more compact and lightweight design. The thermal foldback feature also ensures reliability by preventing the amplifier from overheating, thereby protecting both the amplifier and the speakers.

The device incorporates various protection features, including short-circuit protection, thermal protection, and a clip detector, which contributes to the overall robustness of the amplifier. Additionally, the TDA8920CJ/N1 is equipped with a mute and standby function, allowing for power conservation when the amplifier is not in use.

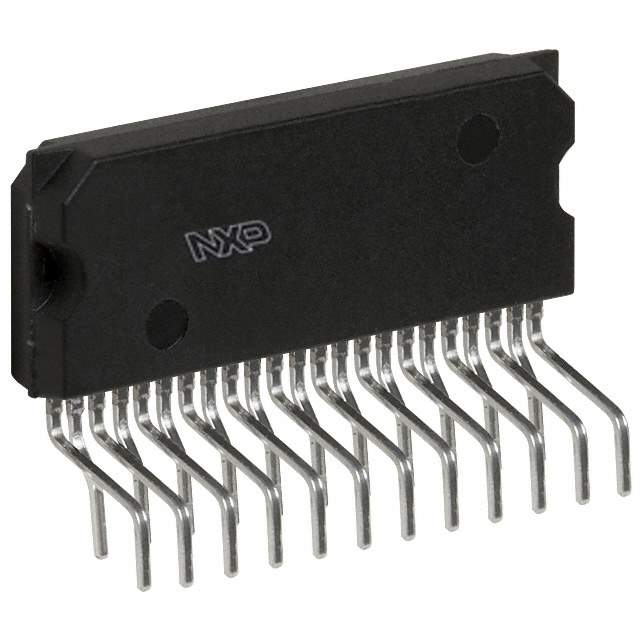

The TDA8920CJ/N1 is housed in a 23-lead DIL-bent-SIL power package, which facilitates easy mounting on a printed circuit board. This package also offers excellent isolation between the power and signal grounds, thereby reducing the risk of interference and ensuring high-quality audio performance.

Whether you're designing a home theater system, professional audio equipment, or a high-performance car audio system, the TDA8920CJ/N1 by NXP Semiconductors is a reliable and efficient solution that delivers superior audio quality and performance.
