TDA8560Q/N1,112 NXP
Same model may have multiple batches, images only for reference.

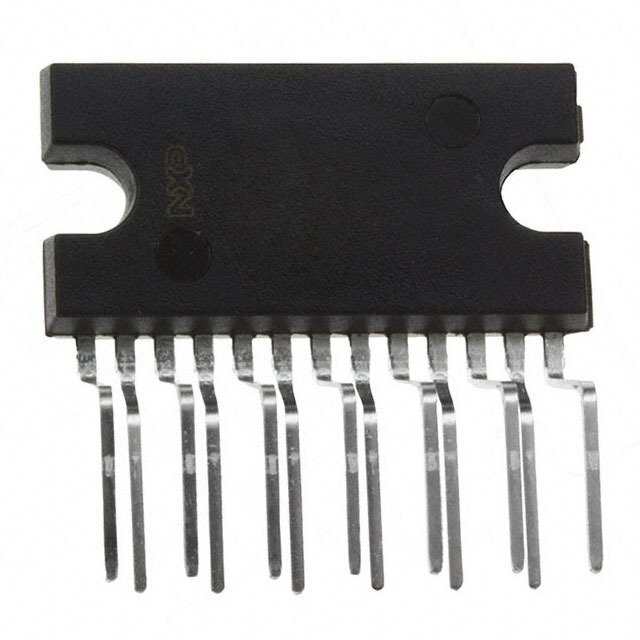

TDA8560Q/N1,112

Part No TDA8560Q/N1,112
Manufacturer NXP / Nexperia
Catalog Linear - Amplifiers - Audio
Description IC AMP AUDIO PWR 55W STER 13SIL / Audio Amp Speaker 2-CH Stereo 55W Class-B Automotive 13-Pin DBS13P Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer NXP
Packaging Tube
Part Status Obsolete(EOL)
Type Class B
Output Type 2-Channel (Stereo)
Max Output Power x Channels @ Load 55W x 2 @ 2 Ohm
Operating Supply Voltage 6 V ~ 18 V
Features Depop, Mute, Short-Circuit and Thermal Protection, Standby
Mounting Style Through Hole
Operating Temperature Range -40°C ~ 85°C (TA)
Manufacturer Package 13-PDBS
Package 13-SIP Formed Leads
Win Source Part Number 796590-TDA8560Q/N1,112
Popularity Medium
Supply and Demand Status Limited
Family Name TDA8560
Introduction Date March 01, 1994
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TDA8560Q/N1,112 CAD Model

Description

The TDA8560Q/N1,112 is a 2-channel (stereo) Class B type integrated circuit from NXP.

  • Maximum Output Power: 55W x 2 @ 2 Ohm
  • Supply Voltage: 6 V to 18 V
  • Features: Depop, mute, short-circuit and thermal protection, and standby
  • Package: 13-SIP formed leads
  • Mounting: Through-hole
  • Operating Temperature: -40°C to 85°C (TA)
  • Applications: Audio
