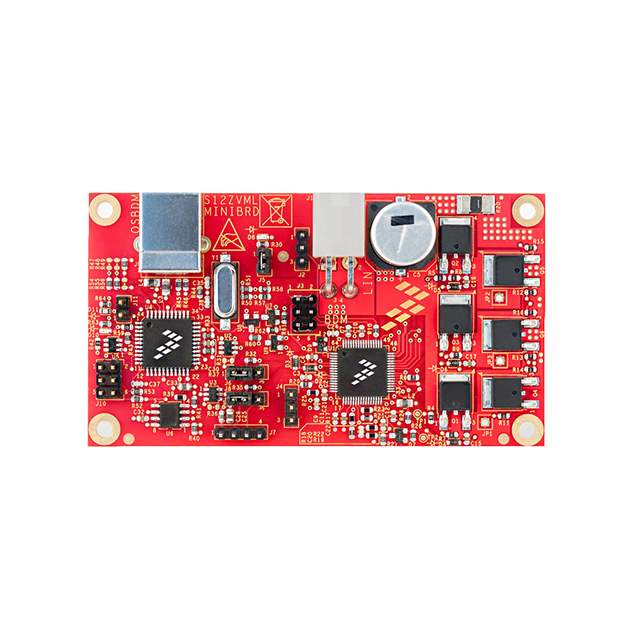

The NXP S12ZVML-MINIBRD is a compact evaluation board designed for motor control applications. It features the S12 MagniV S12ZVM mixed-signal microcontroller, which combines a 16-bit S12 CPU core with an integrated S12ZVM MC9S12ZVML128 microcontroller, offering a comprehensive solution for automotive and industrial applications.

The S12ZVML-MINIBRD is specifically tailored for applications requiring precise motor control, such as automotive window lifters, sunroof controllers, wiper systems, and small industrial pumps and fans. It is equipped with a LIN physical transceiver and a voltage regulator module, making it an ideal platform for developing and testing LIN-based motor control systems.

Key features of the S12ZVML-MINIBRD include:

• Integrated VREG with 5V and 3.3V outputs for powering both the microcontroller and external components.
• On-board LIN transceiver to enable communication with LIN networks.
• 16-bit S12 core operating at up to 25MHz for robust processing capabilities.
• 128KB of flash memory and 8KB of RAM for ample storage and efficient data management.
• High-speed PWM modules with fault protection for advanced motor control.
• 12-bit analog-to-digital converter (ADC) for accurate sensor readings and feedback.
• Multiple communication interfaces, including SPI, SCI, and IIC, for versatile connectivity options.

The evaluation board is designed for ease of use, with a user-friendly interface and access to all the microcontroller's peripherals. It can be powered via the USB connector, making it convenient for quick setup and testing. The S12ZVML-MINIBRD also supports the CodeWarrior development environment, which provides developers with a comprehensive suite of tools to streamline the development process, from coding to debugging.

Whether you're a seasoned engineer or a student just starting out, the NXP S12ZVML-MINIBRD mini evaluation board is an excellent tool for exploring the capabilities of the S12ZVM microcontroller and developing sophisticated motor control applications.
