NXP PCF8563BS/4 Real-Time Clock/Calendar

The PCF8563BS/4 is a CMOS Real-Time Clock (RTC) and calendar optimized for low power consumption and with an I2C interface, manufactured by NXP Semiconductors. This integrated circuit is designed to provide precise time and date information, including seconds, minutes, hours, day, date, month, and year. It automatically adjusts for months with fewer than 31 days, including corrections for leap years. It also provides the option of operating in either the 24-hour or 12-hour format with an AM/PM indicator.

With a power consumption of less than 250 nA in battery-backup mode, the PCF8563BS/4 is an excellent choice for battery-powered applications. Its low power requirement helps in extending the life of backup batteries and makes it an ideal component for portable and handheld devices, as well as other applications where power efficiency is crucial.

The device features a programmable clock output, timer, and interrupt function that can be used for various purposes, including waking up the microcontroller (MCU) from power-saving modes at predetermined intervals. This functionality is essential in applications that require regular actions, such as data logging or time-stamping events.

Interfacing with the PCF8563BS/4 is straightforward thanks to its I2C-bus interface which supports standard (100 kHz) and fast (400 kHz) modes. This two-wire serial interface minimizes the complexity of communication and reduces the number of pins required for connection, saving valuable space on the PCB.

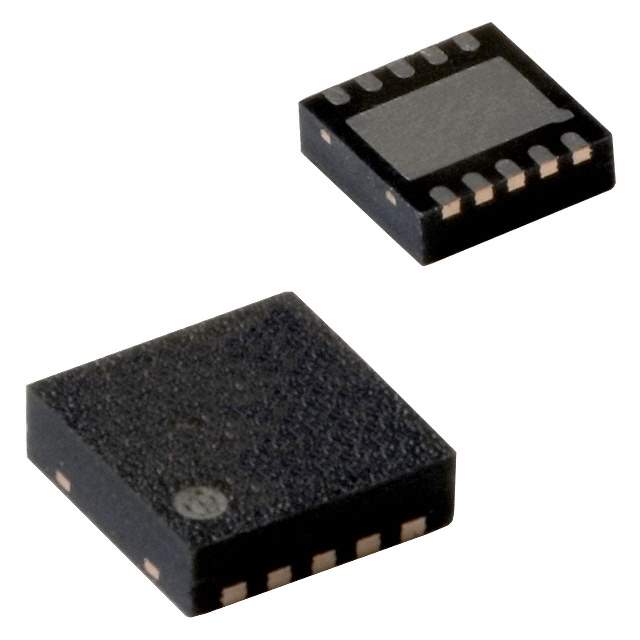

Additionally, the PCF8563BS/4 comes in a small SOT505-1 package, making it suitable for space-constrained applications. It also includes an integrated oscillator capacitor which reduces the number of external components required for the oscillator function, further simplifying the design and reducing the overall bill of materials.

Overall, the NXP PCF8563BS/4 is a highly integrated, feature-rich real-time clock and calendar that offers a robust timekeeping solution for a wide range of applications, from consumer electronics to industrial control systems.
