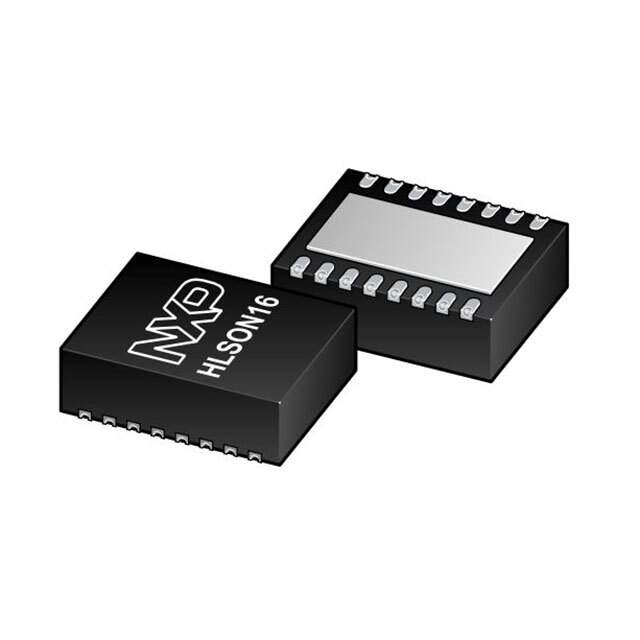

The NXP PCF2131TFY is a cutting-edge, low-power real-time clock/calendar (RTC) IC, designed to provide precise time and date information for a wide range of applications. With its integrated quartz crystal resonator, it offers high accuracy and stability, making it an ideal choice for consumer electronics, industrial control systems, and IoT devices where timekeeping is crucial.

Key Features

• High Accuracy: The PCF2131TFY comes with an integrated 32.768 kHz quartz crystal that ensures high precision and minimal drift over time and temperature.
• Low Power Consumption: It is optimized for low power consumption, making it suitable for battery-powered applications, with a typical current consumption of only 0.22 µA at VDD = 3.0 V and Tamb = 25 °C.
• Wide Voltage Range: The device operates over a wide voltage range from 1.3 V to 5.5 V, providing flexibility for use in various system designs.
• Programmable Alarm and Timer Functions: It includes programmable alarm and timer functions that can generate interrupts, helping to manage power-efficient task scheduling.
• I²C-Bus Interface: Featuring a serial I²C-bus interface, the PCF2131TFY allows easy integration into most microcontroller-based systems.
• Automatic Switch-over and Battery Backup: The RTC can automatically switch over to a battery supply when the main power is lost, ensuring uninterrupted timekeeping.
• Industrial Temperature Range: It is designed to operate within an industrial temperature range of -40 °C to +85 °C, making it robust for challenging environments.

Applications

The NXP PCF2131TFY is versatile and can be used across various industries and applications. It is particularly well-suited for:

• Smart meters
• Wearable devices
• Home automation systems
• Industrial and medical equipment
• Portable communication devices

With its combination of features, the NXP PCF2131TFY RTC offers a reliable and efficient solution for timekeeping and can be seamlessly integrated into your next project or product design.
