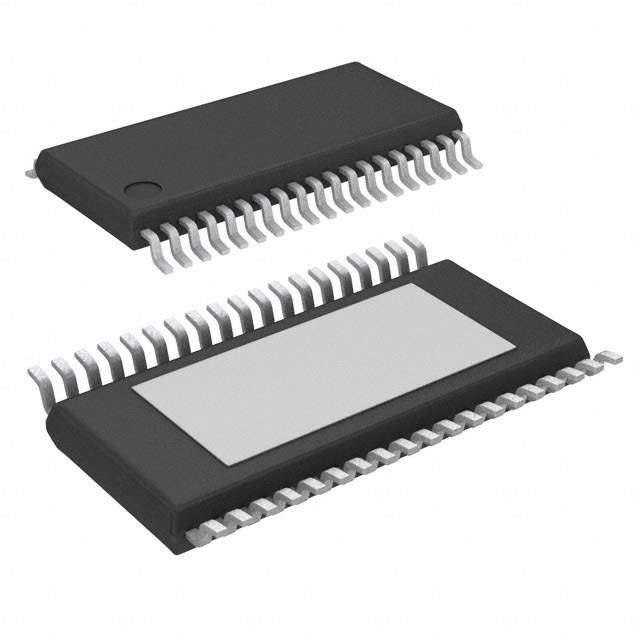

Product Overview: NXP PCA9956ATWY

The NXP PCA9956ATWY is a sophisticated 24-channel constant current LED driver, designed to address the demands of complex LED illumination applications. With its state-of-the-art features and capabilities, this driver is an ideal choice for engineers looking to create advanced lighting solutions with high-density LED arrays.

Key Features

• Channel Count: 24 independently controlled output channels allow for versatile and complex lighting patterns.
• Output Current: Each channel provides a programmable constant current from 0 mA to 57 mA, with the capability to extend up to 100 mA with an external resistor, ensuring precise control over LED brightness.
• Group Dimming: The PCA9956ATWY supports group dimming and blinking that can be synchronized across multiple LED drivers, enabling uniform behavior in large-scale lighting applications.
• Error Detection: Integrated open, short load, and overtemperature detection features help protect the circuit and ensure reliable operation.
• Interface: A built-in I²C-bus interface facilitates communication with microcontrollers or processors, making it easy to integrate into a variety of systems.
• Supply Voltage: Operating on a supply voltage range of 3.0 V to 5.5 V, this LED driver is versatile and can be used in various power environments.

Applications

The PCA9956ATWY is suitable for a wide range of applications, including:

• LED video displays
• LED matrix management
• Architectural lighting
• General-purpose LED illumination
• Signage and decorative LED lighting

Quality and Reliability

NXP is known for its commitment to quality, and the PCA9956ATWY is no exception. It is designed to meet the rigorous standards required for industrial and commercial lighting solutions, ensuring long-term reliability and performance.

In summary, the NXP PCA9956ATWY LED driver combines high channel count, extensive programmability, and robust protection features to offer a versatile solution for managing complex LED lighting arrays.
