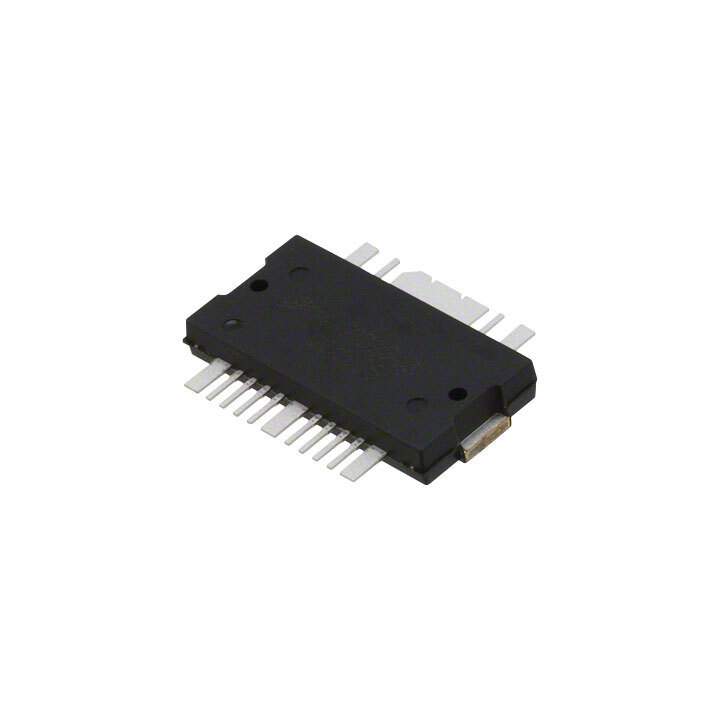

NXP MW7IC3825NR1 RF Integrated Circuit

The NXP MW7IC3825NR1 is a high-performance RF integrated circuit designed for a wide range of applications, including but not limited to, RF power amplifiers in cellular base station transceivers. This product is part of NXP's advanced RF portfolio and is engineered to provide efficient, reliable performance for communication systems operating in the 1805 to 1880 MHz frequency range.

Key Features

• Frequency Range: Specifically designed to operate within the 1805 to 1880 MHz frequency band, making it ideal for DCS1800 applications.
• High Output Power: Capable of delivering a high output power of 25 Watts, ensuring robust signal transmission and reception for high-demand applications.
• High Gain: Offers a high gain of 32 dB (typical), which enhances signal strength and quality without the need for additional amplification stages.
• Efficiency: Features a high efficiency of 32% (typical), reducing power consumption and heat dissipation, which is crucial for maintaining system reliability and longevity.
• Integrated ESD Protection: Comes with built-in electrostatic discharge (ESD) protection, safeguarding the device from unexpected voltage spikes and enhancing its durability.
• Thermally Enhanced Package: Utilizes an over-molded plastic package that provides excellent thermal performance and ensures stability under varying operating conditions.

Applications

The MW7IC3825NR1 is versatile enough to be used in a variety of RF power applications. It is particularly suited for:

• Cellular base station transceivers for DCS1800 networks
• RF power amplifiers for GSM, GPRS, EDGE, and CDMA systems
• Professional mobile radio systems
• General-purpose RF applications requiring high power and efficiency

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability. The MW7IC3825NR1 is manufactured to the highest standards to ensure it meets the rigorous demands of commercial and industrial applications. Customers can trust NXP's products for consistent performance and durability.
