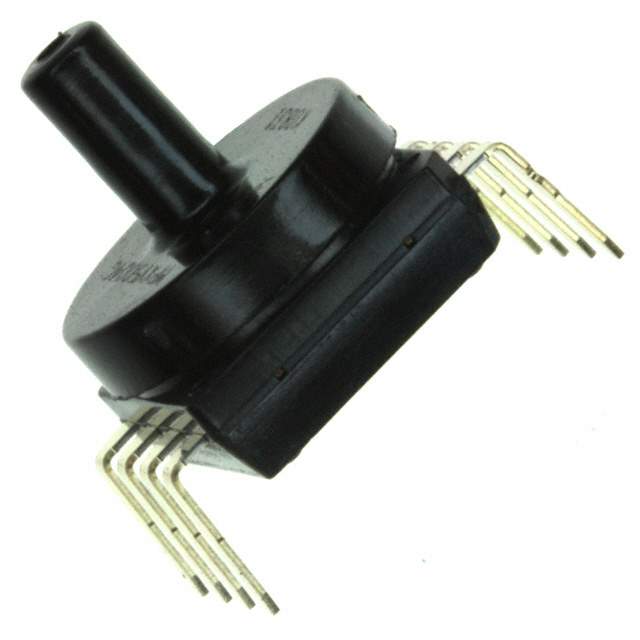

NXP MPXV5100GC7U Pressure Sensor

The NXP MPXV5100GC7U is a state-of-the-art pressure sensor that offers a highly accurate and reliable solution for a wide range of applications. This sensor is part of NXP's integrated silicon pressure sensor family, designed for a high level of integration aimed at providing an optimal solution for measuring pressure over a range of 0 to 100 kPa.

Key Features

• Pressure Range: The MPXV5100GC7U has a pressure range of 0 to 100 kPa, making it suitable for various applications, including medical devices, industrial controls, and automotive systems.
• Temperature Compensated: This sensor includes temperature compensation ranging from -40°C to +125°C, ensuring accurate readings over a wide range of operating conditions.
• Calibrated: Each MPXV5100GC7U sensor is calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and accuracy errors, which minimizes the need for user calibration.
• Output: The device provides a proportional analog voltage output that is linearly proportional to the applied pressure. This analog output can be easily interfaced with various electronics, including microcontrollers and analog-to-digital converters.
• Package: It comes in a small outline package (SOP) with a dual port and a 7-pin configuration, which is ideal for PCB mounting and offers a robust mechanical package.
• Integrated Protection: The sensor includes integrated protection features against electrostatic discharge (ESD), ensuring enhanced durability and longevity in harsh environments.

Applications

The versatility of the MPXV5100GC7U makes it an excellent choice for a variety of applications. It is commonly used in:

• Medical devices such as respiratory equipment and blood pressure monitors
• Automotive systems for engine control, tire pressure, and fluid level measurements
• Industrial controls including process control and robotics
• Air movement control such as HVAC systems and air flow sensors

With its robust design, reliability, and precision, the NXP MPXV5100GC7U pressure sensor is a top-tier component for any application requiring accurate pressure measurement.
