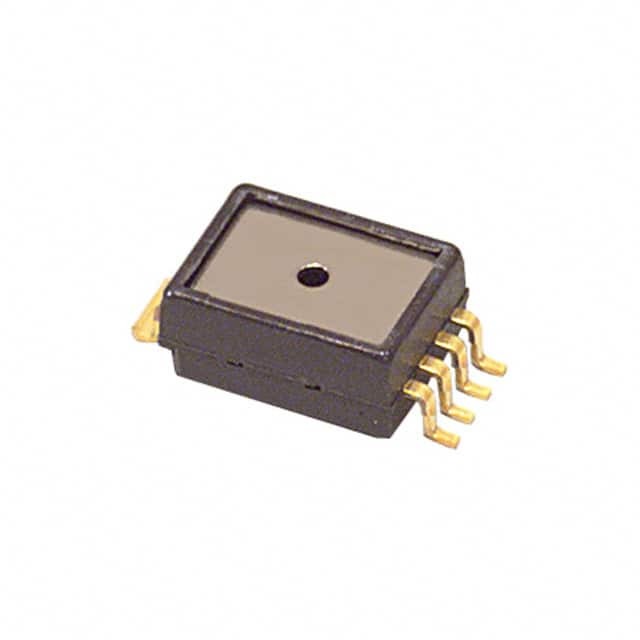

The NXP MPXM2202A is a state-of-the-art pressure sensor designed to deliver high-performance measurements in a variety of applications. This sensor is part of NXP's MPXx2202A series, which is known for its reliability and accuracy in pressure sensing. The MPXM2202A is a piezoresistive transducer that is a gauge pressure measuring device, indicating the difference between atmospheric pressure and the pressure of the medium being measured.

Key Features

• Pressure Range: The MPXM2202A is designed to measure a wide range of pressures, from 0 to 200 kPa, making it suitable for numerous applications.
• High Sensitivity: With its piezoresistive technology, this sensor provides a very high sensitivity of 40 mV/kPa at a 10Vdc operating voltage.
• Temperature Compensated: The device includes temperature compensation from -40°C to +125°C, ensuring accurate readings across a broad range of operating conditions.
• Small Form Factor: The compact size of the MPXM2202A allows for easy integration into space-constrained designs without sacrificing performance.
• Durable: Encapsulated in a high-quality silicon gel, the sensor is protected from environmental factors such as moisture and dust, enhancing its durability and lifespan.
• Versatile Applications: Ideal for use in medical instruments, pneumatic control systems, and other industrial and consumer applications that require precise pressure monitoring.

Electrical Characteristics

The MPXM2202A operates at a supply voltage of 10Vdc and has a full-scale output of 40mV. The low input impedance of this device makes it compatible with most signal processing equipment, ensuring that it can be easily integrated into a wide range of systems.

Quality and Reliability

NXP is known for its commitment to quality, and the MPXM2202A is no exception. Each sensor is rigorously tested to meet NXP's high standards for performance and reliability. Whether you're developing a new product or upgrading an existing system, the MPXM2202A is an excellent choice for precise pressure measurement.
