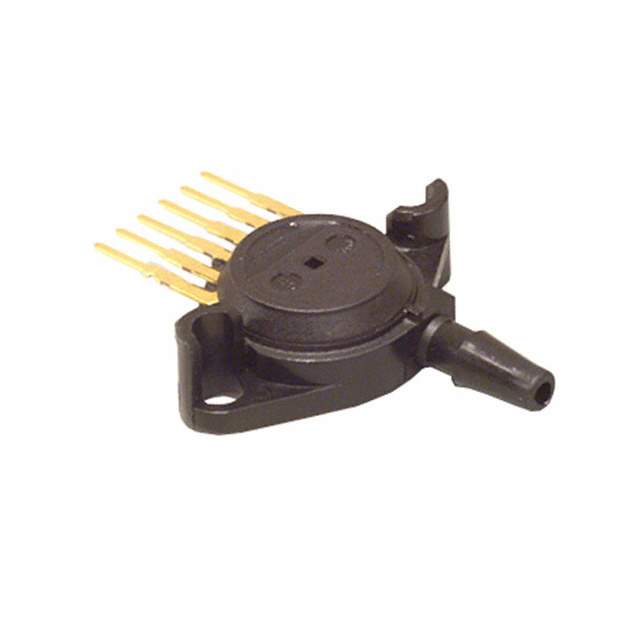

Overview of NXP MPX5050GP Pressure Sensor

The NXP MPX5050GP is a highly accurate piezoresistive pressure sensor designed for a wide range of applications, including but not limited to medical systems, industrial controls, and pneumatic systems. This integrated pressure sensor provides a very stable output over a wide temperature range and is particularly suited for applications where users require a reliable and consistent performance.

Key Features

• Pressure Range: The MPX5050GP sensor is designed to measure pressure from 0 to 50 kPa (0 to 7.25 PSI), making it versatile for various mid-range pressure sensing applications.
• Integrated Signal Conditioning: This sensor includes temperature compensation and calibration, which are integrated on-chip. The output is a proportional voltage, making it easy to interface with readout electronics.
• Accuracy: It offers an impressive accuracy of ±2.5% Maximum Error over 0° to 85°C, ensuring reliable readings for critical applications.
• Dual Port: The MPX5050GP comes with a dual port configuration, which allows for differential pressure measurements. This can be particularly useful for flow measurement and other applications where differential pressure data is required.

Applications

The MPX5050GP can be used in a variety of applications including:

• Medical devices such as blood pressure monitors
• Level indicators for water tanks or fuel systems
• Air flow sensors in HVAC systems
• Industrial process control systems
• Altitude and barometric pressure measurement

Technical Specifications

• Supply Voltage: 4.85 to 5.35 V
• Operating Temperature: -40°C to +125°C
• Package: The MPX5050GP is available in a 6-pin SIP (Single Inline Package), which is ideal for PCB mounting and space-constrained applications.

Whether you are developing a sophisticated industrial system or a simple water level detector, the NXP MPX5050GP offers a reliable solution for your pressure sensing needs. Its robust design and integrated features reduce the need for external components, simplifying the design and development process for engineers and product designers.
