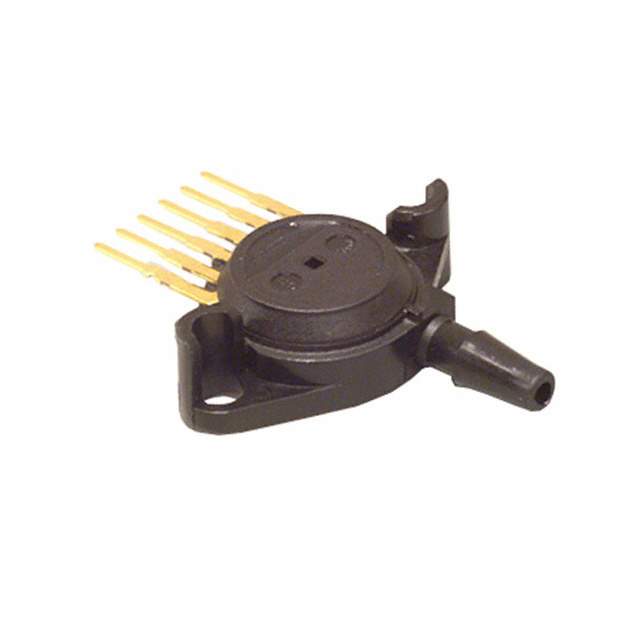

The MPX5010GP is a highly accurate piezoresistive pressure sensor from NXP Semiconductors designed to handle a wide range of applications. This integrated pressure sensor provides a very simple analog interface, making it ideal for developers and engineers seeking to incorporate pressure sensing into their designs without the need for complex circuitry or additional components.

Key Features

• Pressure Range: The MPX5010GP measures differential pressure in the range of 0 to 10 kPa (0 to 1.45 psi), making it suitable for a variety of low-pressure applications.
• Output: It provides a linear voltage output that is directly proportional to the applied pressure. The output is ratiometric with respect to the supply voltage, offering ease of use with standard ADCs.
• Accuracy: With a high level of accuracy (±2.5% Maximum Error over 0° to 85°C), the sensor ensures precise readings for reliable performance in critical applications.
• Supply Voltage: The sensor operates at a supply voltage of 4.85 V to 5.35 V, compatible with most common electronic devices and systems.
• Package: Encased in a durable, dual-port, thermoplastic (polysulfone) housing, the MPX5010GP is designed to be easily mountable and robust against environmental factors.
• Integrated Silicon Pressure Sensor: On-chip signal conditioned temperature compensated and calibrated, the MPX5010GP offers a high-level, stable output.

Applications

The versatility of the MPX5010GP allows it to be used in a wide array of applications, including but not limited to:

• Medical devices such as respiratory equipment and blood pressure monitors
• Level and flow sensing in industrial control systems
• Environmental monitoring for weather stations
• Air movement control in HVAC systems
• Various consumer products requiring pressure measurement

With its reliable performance and straightforward interfacing, the NXP MPX5010GP pressure sensor is an excellent choice for developers in need of an effective pressure sensing solution.
