The NXP MPC566CZP56 is a high-performance microcontroller designed for automotive and industrial applications that require robust processing capabilities and advanced features. This microcontroller is part of the MPC500 family, which is well-known for its integration of a powerful core with a rich set of peripherals.
Key Features:
- Core: The MPC566CZP56 is built around the 32-bit PowerPC 5000 series core, which operates at a frequency of up to 56 MHz, providing a balanced combination of computing power and energy efficiency.
- Memory: This microcontroller comes with an ample memory configuration, including 1 MB of flash memory for program storage and 36 KB of RAM for data processing.
- Advanced Timers: It features a comprehensive set of timers, including a Time Processor Unit (TPU), Enhanced Time Processor Unit (eTPU), and Modular I/O System (MIOS), which are essential for precise timing and control tasks in complex applications.
- Communication Interfaces: The device supports multiple communication protocols such as CAN, SPI, and UART, allowing for versatile connectivity options with other components in a system.
- Analog-to-Digital Converter (ADC): With an integrated 10-bit ADC, the MPC566CZP56 can efficiently process analog signals, making it suitable for sensor-based applications.
- System Protection: It includes features like a Memory Protection Unit (MPU) and Error Correction Code (ECC) on the flash memory, ensuring system reliability and data integrity.
- Temperature Range: The microcontroller operates within an extended temperature range, making it ideal for harsh environmental conditions often encountered in automotive and industrial settings.
Applications:
The NXP MPC566CZP56 is particularly suited for applications such as engine management systems, transmission control, body control modules, and industrial control systems. Its robust architecture and comprehensive feature set enable developers to create sophisticated and reliable systems that meet stringent performance requirements.
Package and Quality:

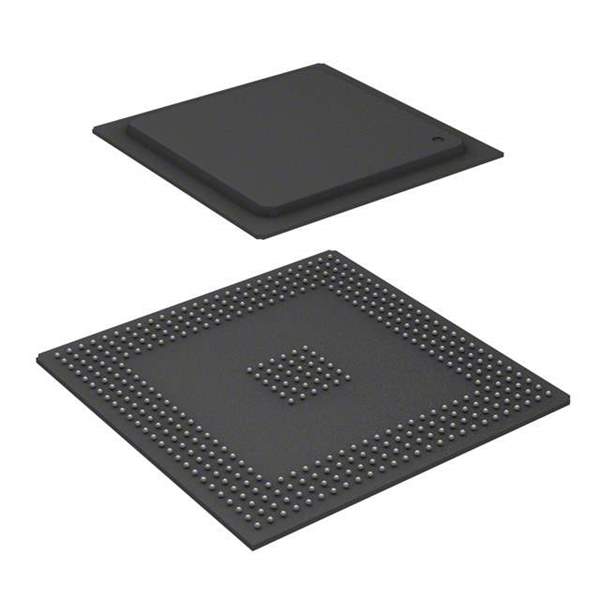

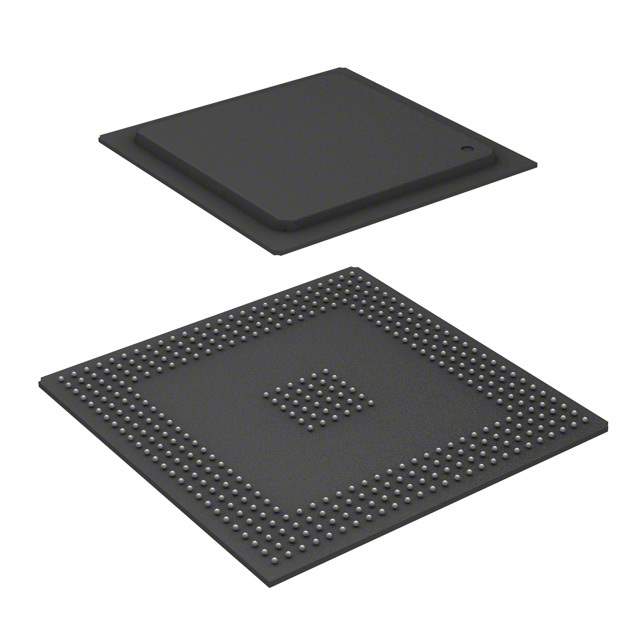

The microcontroller is offered in a 388-pin PBGA package, providing a compact footprint for space-constrained applications. NXP's commitment to quality ensures that the MPC566CZP56 meets the high standards required for automotive-grade components, including AEC-Q100 certification.
