Products specifications Report Issue?

Categories Integrated Circuits (ICs)

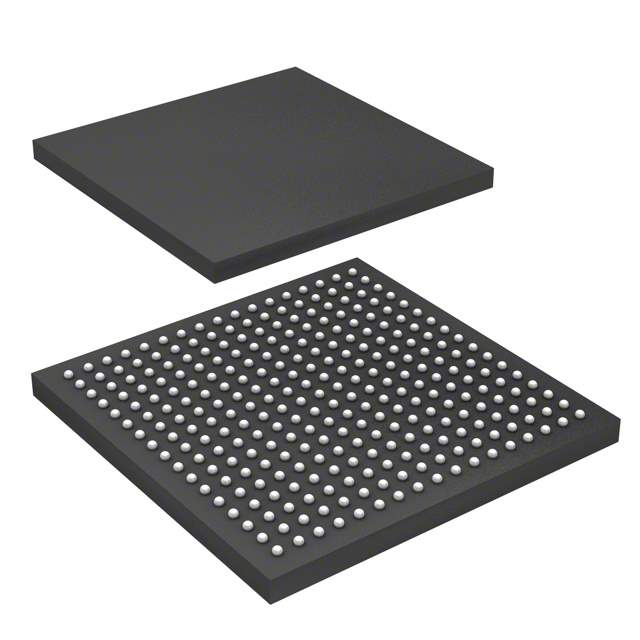

Features ARM® Cortex®-A7 Microprocessor IC series 1 Core, 32-Bit 528MHz 289-MAPBGA (14x14)
Manufacturer NXP
Series i.MX6
Package Tray
Part Status Obsolete
Core Processor ARM® Cortex®-A7
Speed 528MHz
Operating Temperature Range 0°C ~ 95°C (TJ)
Package 289-LFBGA
Case / Package 289-MAPBGA (14x14)
Family Name MCIMX6
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Other Part Number 568-13075, 935313074557
Quantity per package 152
Popularity High
Supply and Demand Status Balance
Win Source Part Number 926564-MCIMX6Y2DVM05AA
Ultra Librarian 3D Model Ultra Librarian MCIMX6Y2DVM05AA CAD Model

Description

The NXP MCIMX6Y2DVM05AA is a high-performance, energy-efficient processor designed to meet the needs of advanced multimedia and secure applications. This processor is part of the i.MX 6 series, which is renowned for its scalable multicore platform that includes single-, dual- and quad-core families based on the ARM Cortex-A9 architecture.

Key Features

  • Processor Core: ARM Cortex-A9, which delivers a high level of performance and efficiency, is ideal for running complex operating systems and applications.
  • Speed: The MCIMX6Y2DVM05AA operates at a speed of up to 800 MHz, providing a balanced performance for embedded devices.
  • Graphics: Integrated 2D and 3D graphics processors ensure smooth and responsive visuals, which is crucial for applications requiring graphical user interfaces.
  • Memory: It supports a variety of memory interfaces, including 16-bit LPDDR2, DDR3, DDR3L, which allows for flexible design choices to match specific application requirements.
  • Connectivity: This processor comes with an array of connectivity options such as high-speed USB 2.0, I2C, SPI, and UART, making it suitable for a wide range of applications.
  • Advanced Security: The device features hardware-enabled security capabilities to support secure boot, crypto engine (AES/TDES/SHA/RSA), and random number generator, ensuring safe data management and device integrity.

Applications

The NXP MCIMX6Y2DVM05AA is versatile and can be used in a variety of applications. It is particularly well-suited for:

  • Industrial automation and control systems
  • Automotive infotainment platforms
  • Smart energy management systems
  • Portable medical devices
  • Interactive point-of-sale kiosks
  • Advanced HMI (Human Machine Interface) screens

Environmental and Quality Certifications

The processor is designed with a focus on environmental sustainability and quality, meeting various industry standards and certifications. This ensures reliability and longevity in the field, making it a trusted choice for developers and manufacturers.

With its robust processing capabilities, extensive connectivity, and advanced security features, the NXP MCIMX6Y2DVM05AA is an ideal solution for developers looking to create sophisticated embedded systems with a need for rich multimedia experiences and secure data handling.
