NXP MC33794EK Electromagnetic Sensor Evaluation Kit

The NXP MC33794EK is a comprehensive evaluation kit designed for the MC33794, an electromagnetic sensor from NXP Semiconductors. This sensor is specifically engineered to detect the presence of nearby objects without physical contact by measuring the impedance changes in an externally tuned LC tank circuit. The MC33794EK evaluation kit provides all the necessary tools to facilitate the development, testing, and deployment of proximity detection and position sensing applications.

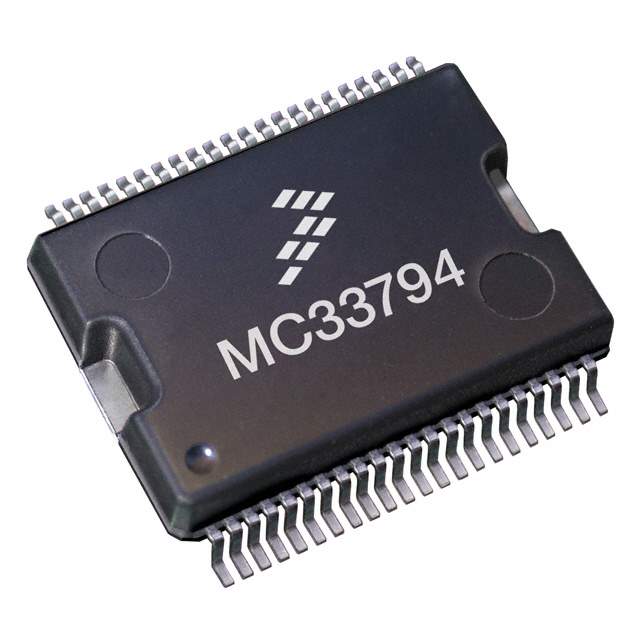

At the heart of the kit is the MC33794 sensor, which operates at a frequency of 125 kHz and is capable of detecting objects with high accuracy and reliability. The sensor's ability to resist environmental disturbances makes it an ideal choice for automotive, industrial, and consumer applications where robustness and precision are paramount. With its ability to interface with microcontrollers through a simple SPI bus, the MC33794 provides a flexible and easy-to-use solution for a wide range of proximity detection challenges.

The evaluation kit includes a fully assembled and tested evaluation board that showcases the functionality of the MC33794 sensor. It also comes with a suite of documentation and software tools to assist developers in quickly integrating the sensor into their designs. The included software provides an intuitive graphical user interface (GUI) for configuring the sensor parameters, visualizing sensor data, and conducting real-time analysis of the sensor's performance.

Key features of the NXP MC33794EK evaluation kit include:

• MC33794 Electromagnetic Sensor for contactless detection
• Easy-to-use SPI interface for communication with microcontrollers
• Robust design capable of withstanding harsh environments
• Comprehensive software tools and GUI for easy configuration and data analysis
• Applicable for automotive, industrial, and consumer markets
• Support for external LC tank circuit tuning
• Quick setup and demonstration capabilities

Whether you are developing an advanced driver-assistance system (ADAS), creating a touchless user interface, or implementing position sensing in an industrial setting, the NXP MC33794EK evaluation kit offers a versatile platform to accelerate your product development and bring cutting-edge proximity sensing technology to your applications.
