The NXP LPC2470FBD208 is a high-performance microcontroller that is part of the LPC2400 family, designed to meet the demanding requirements of embedded applications. This versatile microcontroller is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, which makes it ideal for applications that require high-speed processing and advanced debugging capabilities.
With a maximum operating frequency of up to 72 MHz, the LPC2470FBD208 provides excellent computational performance while maintaining efficiency in power consumption. It incorporates 512 KB of high-speed flash memory and 98 KB of RAM, ensuring ample space for complex applications and the ability to handle multiple tasks simultaneously.
Key Features:
- Core: ARM7TDMI-S, up to 72 MHz
- Memory: 512 KB Flash, 98 KB RAM
- Peripherals: USB 2.0 Full Speed Device/Host/OTG, 10/100 Ethernet MAC, CAN 2.0B, SD/MMC card interface, I2S, SPI, SSP, 3x UARTs, 3x I2C, and more.
- Advanced Control: PWM unit, Quadrature Encoder interface, and multiple timer/counters
- Power Management: Multiple power-saving modes for optimized energy efficiency

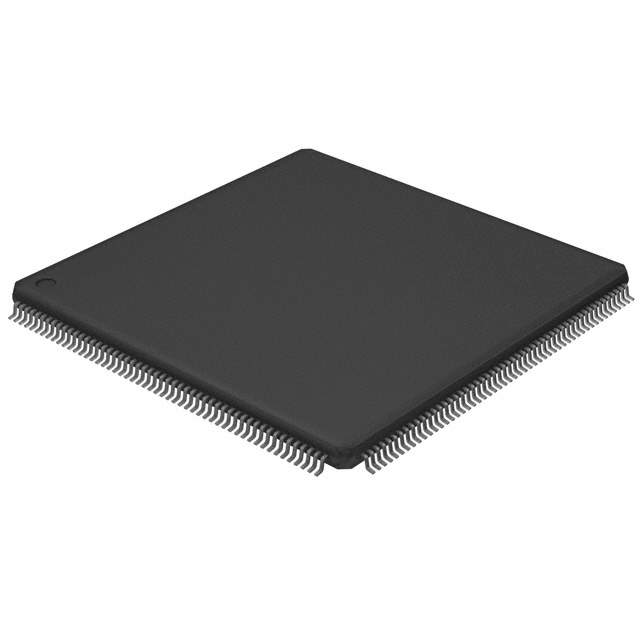

- Package: 208-pin LQFP package for reduced space footprint
- Operating Temperature: -40°C to +85°C industrial temperature range
The LPC2470FBD208 also features an extensive range of communication interfaces, including Ethernet, USB OTG, CAN, and multiple serial interfaces, which makes it an excellent choice for connectivity-intensive applications. Its robust set of I/O options and peripherals support a wide range of functions, from motor control to network communication, making it a versatile solution for industrial control, networking, medical, and automotive applications.
For developers, NXP provides a comprehensive suite of software development tools, including an integrated development environment (IDE), libraries, and example code to streamline the development process and reduce time to market. The LPC2470FBD208's combination of performance, memory, and peripherals, along with the support and reliability of NXP, make it a powerful core for your next embedded project.
