The NXP LPC2458FET180 is a robust, high-performance microcontroller designed to cater to a wide range of applications that demand reliable and efficient operation. At the heart of the LPC2458FET180 is a 16/32-bit ARM7TDMI-S CPU, which provides the perfect balance between power consumption and processing capability, making it an ideal choice for industrial control, medical systems, and automotive applications.

Key Features

• Core: ARM7TDMI-S processor, running at up to 72 MHz.
• Memory: 512 KB of on-chip flash memory with In-System Programming (ISP) and In-Application Programming (IAP) capabilities, alongside 98 KB of RAM for efficient data storage and manipulation.
• Advanced Peripherals: Includes Ethernet MAC, USB Device/Host/OTG, 4 UARTs, CAN, SPI, I2C interfaces, and more for versatile connectivity and communication.
• Power Management: Multiple power-saving modes including Idle and Power-down modes, which significantly reduce power consumption when the device is not in full operation.
• Timers: Multiple 32-bit timers, along with Watchdog Timer and Real-Time Clock, provide excellent timing solutions and system management capabilities.
• ADC/DAC: Integrated 10-bit ADC and DAC for analog signal processing, suitable for sensor interfacing and control applications.
• PWM: The unit comes with a dedicated PWM block for motor control and other PWM applications.

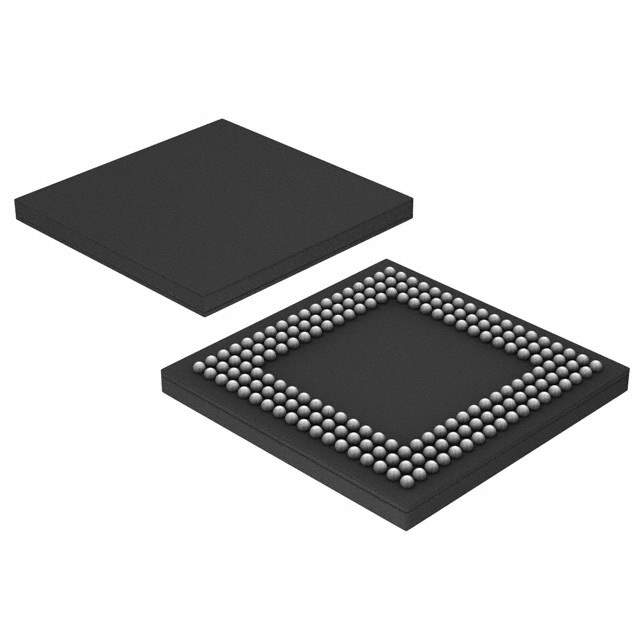

• Package: Available in a compact 180-pin TFBGA package, offering a space-efficient solution for PCB design.

Applications

The LPC2458FET180's versatile feature set makes it highly suitable for a diverse range of applications, such as:

• Industrial automation and control systems
• Networked communication devices
• Medical monitoring equipment
• Automotive electronics
• Embedded audio and voice processing

With its robust design and comprehensive feature set, the NXP LPC2458FET180 microcontroller is engineered to meet the demands of complex embedded systems while maintaining cost-effectiveness and ease of development.
