Introducing the NXP FXPS7115DS4T1 Pressure Sensor

The NXP FXPS7115DS4T1 is a state-of-the-art pressure sensor designed for a wide range of applications, offering precision and reliability in a compact package. This sensor is part of NXP's FXPS7000 series, which is known for its high accuracy and robust performance in challenging environments.

Key Features

• High Sensitivity: The FXPS7115DS4T1 sensor provides a high sensitivity output that varies with applied pressure, making it suitable for precise measurements.
• Wide Pressure Range: It is capable of measuring pressure from 15 kPa to 115 kPa, accommodating various applications from industrial processes to consumer electronics.
• Temperature Compensated: This sensor includes temperature compensation features that ensure stable performance across a temperature range of -40°C to +125°C.
• Dual Ported: The FXPS7115DS4T1 is a dual-ported device, which allows differential pressure measurements, enhancing its versatility.
• Integrated Signal Conditioning: With an integrated signal conditioning ASIC, the sensor outputs a calibrated and temperature-compensated signal, reducing the need for external components.

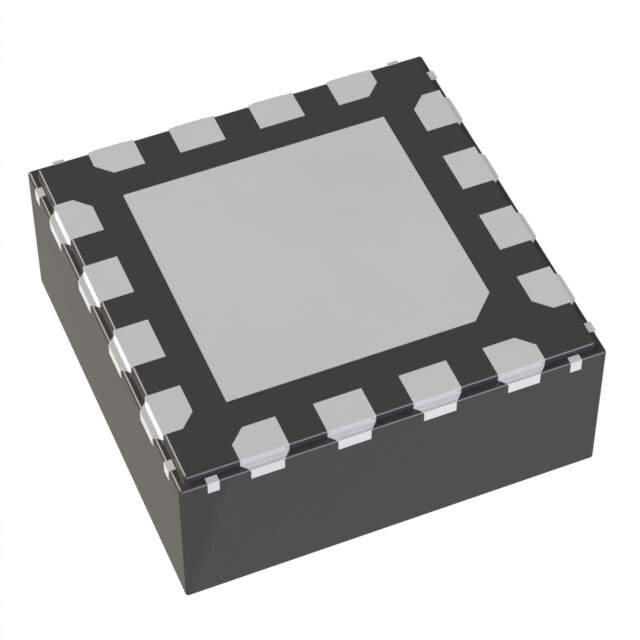

• Small Footprint: The compact QFN package measures just 8x8 mm, making it an excellent choice for space-constrained applications.
• Durability: Designed to withstand harsh conditions, the FXPS7115DS4T1 maintains its integrity and performance over time.

Applications

The versatility of the FXPS7115DS4T1 makes it suitable for a diverse range of applications, including but not limited to:

• Automotive systems such as tire pressure monitoring and HVAC controls
• Industrial controls for process monitoring and pneumatic systems
• Healthcare devices like respiratory equipment and sleep apnea machines
• Consumer electronics, including wearables and smart home devices

Technical Specifications

The FXPS7115DS4T1 is designed with technical precision, featuring an analog output that simplifies integration into existing systems. Its low power consumption makes it ideal for battery-operated devices, and its robust construction ensures long-term reliability.

With its comprehensive features and adaptable functionality, the NXP FXPS7115DS4T1 pressure sensor emerges as an exceptional choice for designers and engineers who require accurate pressure sensing solutions.
