Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Manufacturer NXP
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 500V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 1.35V @ 20A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage @ Vr 50μA @ 500V
Mounting Style Through Hole
Package TO-220-3
Manufacturer Device Package TO-220AB
Win Source Part Number 201720-BYV34-500
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BYV34-500 CAD Model

Description

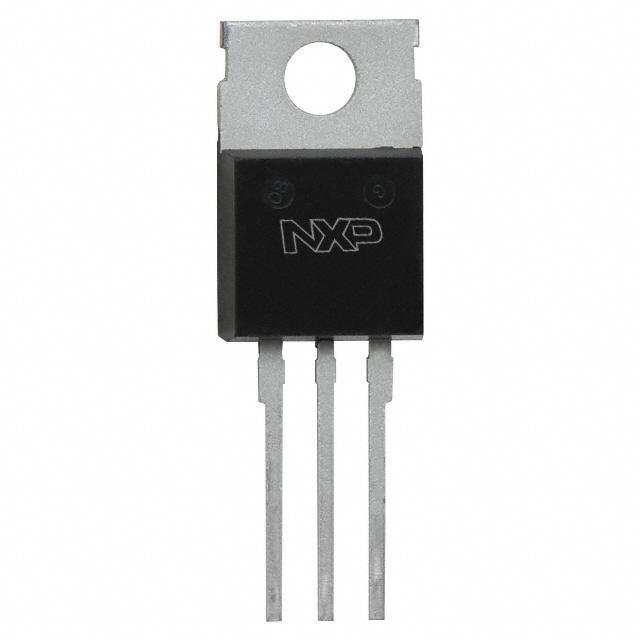

The BYV34-500, manufactured by NXP Semiconductors, is a robust, high-performance dual rectifier diode designed to meet the needs of a wide range of electronic applications. This device is particularly suited for situations requiring a high breakdown voltage and fast switching capabilities.

Featuring a repetitive peak reverse voltage of 500V, the BYV34-500 can handle high voltage operations with ease. This dual diode is configured in a series arrangement, offering the benefit of a common cathode configuration, which simplifies the design of dual voltage supplies or provides a balanced diode pair for full-wave rectification in a single package.

Key Features:

  • High Reverse Voltage: With a repetitive peak reverse voltage of 500V, this device is capable of handling high voltage requirements in various circuits.
  • Fast Switching Speed: The BYV34-500 is designed for fast switching, making it an ideal choice for high-frequency applications.
  • High Forward Surge Current: It has a high forward surge current capability, which is essential for applications that experience momentary overloads.
  • Low Reverse Leakage: The low reverse leakage current ensures minimal power loss and improved efficiency in your electronic designs.
  • Series Configuration: The common cathode configuration allows for easy implementation in a variety of circuit topologies.
  • Robust Package: Encased in a SOT78 (TO220AB) package, the BYV34-500 offers a solid and durable construction that can withstand challenging environmental conditions.

Applications:

The versatility of the BYV34-500 makes it suitable for a broad range of applications, including power supply management, motor control circuits, and various types of converters (such as DC-DC, AC-DC, and frequency converters). Its reliability and performance also make it a good choice for automotive, industrial, and telecommunication systems that demand high voltage and fast switching capabilities.

Whether you are designing a sophisticated power management system or a simple rectification circuit, the BYV34-500 from NXP Semiconductors offers the efficiency, reliability, and quality that engineers and designers require for their electronic components.
