NXP BTA201W-600E Triac

The NXP BTA201W-600E is a highly efficient, silicon-based semiconductor device from the family of triacs, designed to control AC power in various applications. This compact and robust component is well-suited for interfacing with the logic level of microcontrollers and is a popular choice for designers who require reliable AC switching capabilities.

Key Features

• Current Rating: The device can handle a maximum continuous on-state current of 1A, making it suitable for small to medium power applications.
• Repetitive Peak Off-State Voltage: With a repetitive peak off-state voltage (Vdrm) of 600V, the BTA201W-600E can be used in circuits with high voltage requirements, providing ample margin for spikes and surges.
• Gate Trigger Voltage: The triac has a specified gate trigger voltage (Vgt) of 1.5V, which allows for direct interfacing with low voltage control circuits.
• Gate Trigger Current: A minimal gate trigger current (Igt) of 5 mA ensures that the triac can be easily driven by digital outputs from microcontrollers or other logic devices.
• Non-repetitive Peak On-State Current: Its non-repetitive peak on-state current (ITSM) capability ensures that the device can handle high current surges, which is crucial for applications that experience short-term overload conditions.

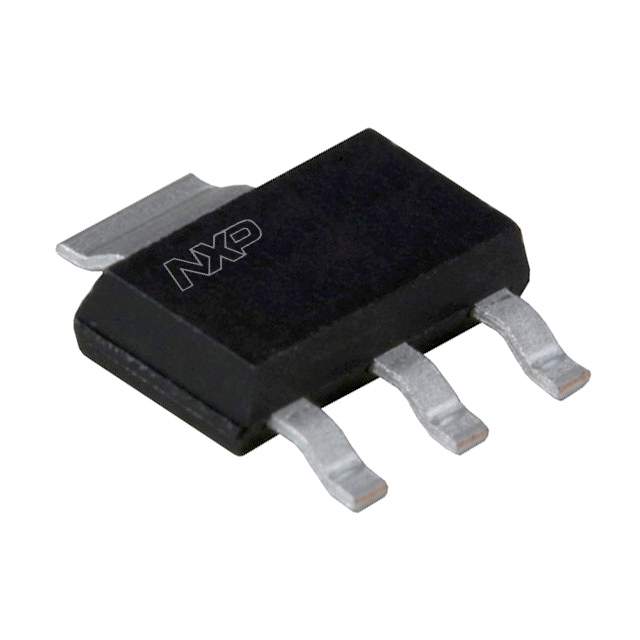

• Package: The BTA201W-600E is available in a SOT-223 surface-mount package, which is designed for efficient PCB space utilization and optimal thermal performance.

Applications

The versatility of the NXP BTA201W-600E makes it an ideal choice for a wide range of applications. It is commonly used in motor control circuits, lighting control systems, and other home appliances where precise AC power control is essential. Its low gate trigger current and voltage make it easy to interface with various control circuits, which is particularly useful in microcontroller-based projects and smart home applications.

Reliability and Performance

NXP's commitment to quality ensures that the BTA201W-600E triac provides reliable performance and long operational life. Its robust design is capable of withstanding the demanding conditions of industrial environments while maintaining precise control of AC loads.
