NXP 74LVT16501ADL,512 - 18-Bit Universal Bus Transceiver with 3-State Outputs

The NXP 74LVT16501ADL,512 is a high-performance, 18-bit universal bus transceiver that belongs to the LVT family, offering a perfect solution for facilitating bidirectional communication between two buses. Designed to operate at 3.3V with 5V tolerant inputs, it's suitable for interfacing with 5V systems, thereby providing a bridge that ensures compatibility between different voltage domains.

This transceiver is equipped with dual enable functions that allow the transmission or reception of data by output-enable (OE) and direction-control (DIR) inputs. When OE is low, and DIR is high, data flows from the A bus to the B bus, and when OE is low and DIR is low, data flows from the B bus to the A bus, allowing for versatile data management in complex systems.

The 74LVT16501ADL,512 features 3-state outputs, which means that besides the normal logic levels of high and low, the outputs can be put into a high-impedance state. This high-impedance state is crucial when you need to disconnect the transceiver from the bus without interrupting the flow of data, making it ideal for shared bus systems where multiple devices may need to take turns communicating over the same channel.

With its Live Insertion and Extraction (LIE) capability, the 74LVT16501ADL,512 ensures that systems remain stable and operational even when boards are inserted or removed during live operation, a feature extremely valuable in hot-swapping applications and server environments.

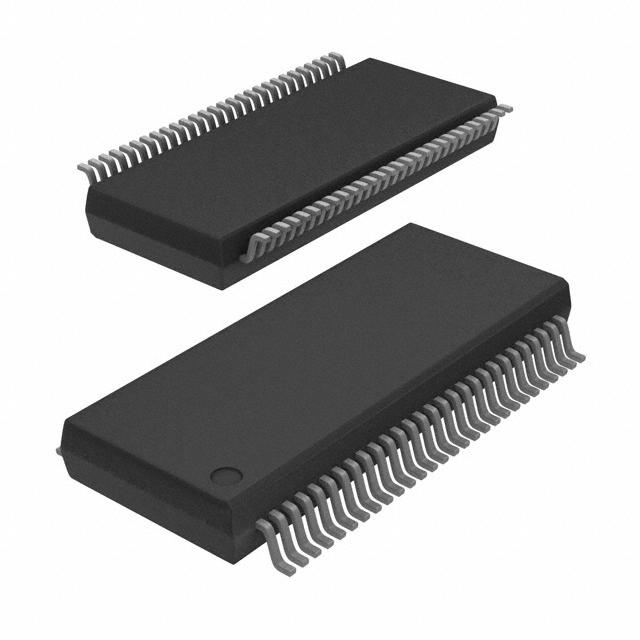

Furthermore, this IC offers a broad supply voltage range (2.7V to 3.6V) and is characterized for operation from -40°C to +85°C, providing reliability and flexibility across various operating conditions. Its packaging is a 56-pin TSSOP (Thin Shrink Small Outline Package), which is conducive for space-saving designs while still offering excellent thermal performance.

Whether you're designing high-speed data acquisition systems, telecommunications infrastructure, or complex computing hardware, the NXP 74LVT16501ADL,512 serves as a robust and efficient solution for your digital data transmission needs.
