NXP 74LVC1G125GF Single Buffer/Gate with 3-State Output

The NXP 74LVC1G125GF is a high-performance, single-buffer gate with a 3-state output, designed to meet the needs of modern high-speed digital interfacing. This device is part of NXP's 74LVC family, which is renowned for its low-voltage operation and low-power consumption, making it an ideal choice for battery-operated and power-sensitive applications.

Key Features

• Wide Supply Voltage Range: The 74LVC1G125GF operates over a wide supply voltage range from 1.65V to 5.5V, providing compatibility with various logic levels and enabling use in mixed-voltage systems.
• High-Speed Operation: With a propagation delay of just a few nanoseconds, this device is capable of high-speed operation, which is essential for modern digital circuits.
• Low Power Consumption: The low-power design ensures minimal power usage, which is critical for extending battery life in portable devices.
• 3-State Output: The 3-state output allows for connection to a bus or other high-impedance state systems, making it versatile for multiplexing and bus-driving applications.
• 5V Tolerant Inputs: Inputs can tolerate 5V even when the device is operating at lower supply voltages, which provides interface flexibility and protects against higher voltage levels.
• ESD Protection: Enhanced Electrostatic Discharge (ESD) protection is included to safeguard the device from static damage during handling and operation.
• Lead-Free and RoHS Compliant: The product is lead-free and complies with the Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly.

Applications

The NXP 74LVC1G125GF is suitable for a wide range of applications, including but not limited to:

• Buffering and driving of bus lines
• Signal gating
• Logic level translation
• Memory address drivers
• Clock distribution

Package Information

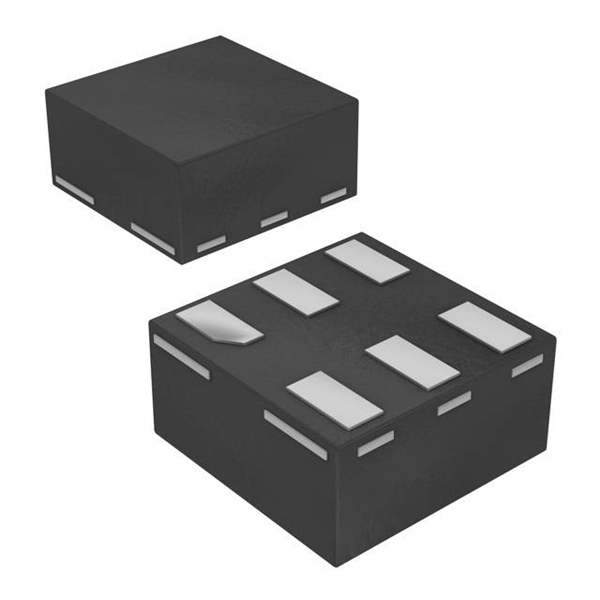

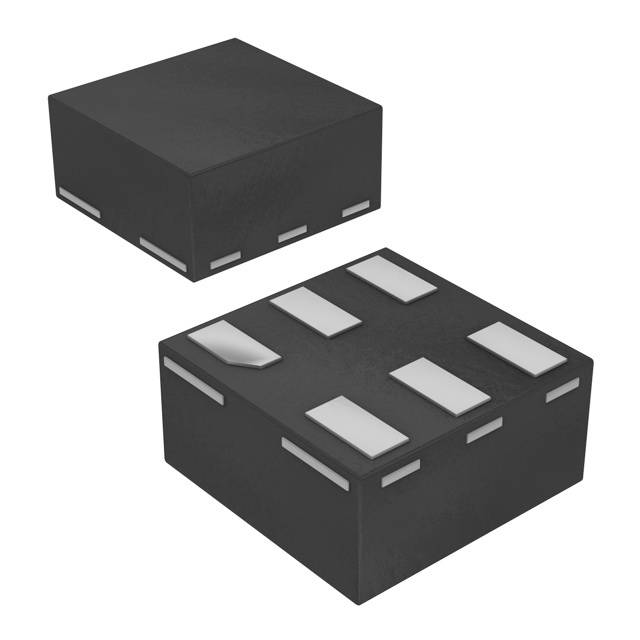

This device is available in a leadless ultra-thin DFN2020-6 (SOT1115) package, which is designed for space-constrained applications. The small form factor and low profile of the package make it ideal for use in handheld devices, wearables, and other portable electronics.

In conclusion, the NXP 74LVC1G125GF is a versatile, high-performance buffer gate that provides reliable operation in a variety of digital applications. Its low power consumption, wide supply voltage range, and robust ESD protection make it a smart choice for designers seeking efficiency and durability.
