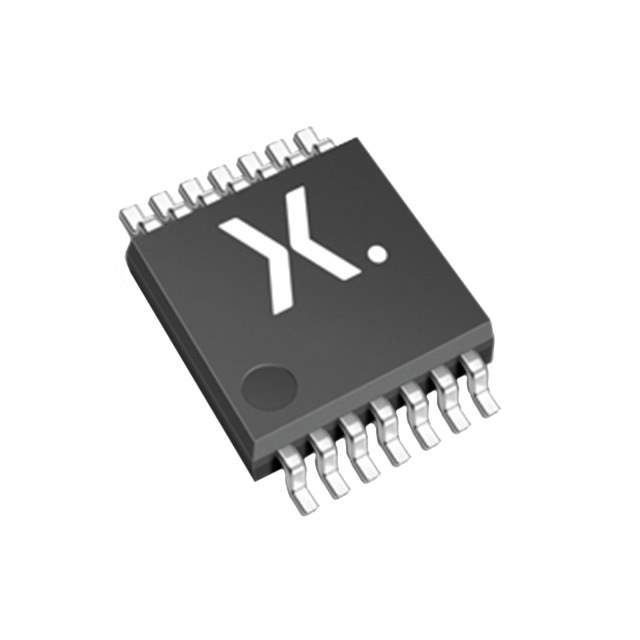

Product Overview: 74AHCT86PW-T by NXP Semiconductors

The 74AHCT86PW-T is a high-speed Si-gate CMOS device from NXP Semiconductors, renowned for its robust performance and versatility in a wide array of electronic applications. This particular integrated circuit is a member of the 74AHC(T)86 family, which consists of exclusive-OR (XOR) gates, fundamental components in digital electronics used for comparing binary information or implementing control logic functions.

Key Features

• Logic Type: The device features four independent exclusive-OR gates, providing the essential logic function that outputs true only when the inputs differ.
• Package: It comes in a TSSOP14 (Thin Shrink Small Outline Package) with 14 pins, which is ideal for space-constrained applications that require a reduced footprint without compromising on performance.
• Supply Voltage Range: The 74AHCT86PW-T operates within a supply voltage range of 4.5V to 5.5V, compatible with TTL (Transistor-Transistor Logic) levels, thus allowing for easy integration into 5V systems.
• High-Speed Operation: It boasts fast propagation delays and transition times, making it suitable for high-speed signal processing tasks.
• Power Consumption: This device has a low power consumption, which is a critical attribute for battery-operated and power-sensitive designs.
• Output Capability: The outputs are capable of driving 10 LSTTL loads, ensuring compatibility with various logic families.
• Temperature Range: The operating temperature range is from -40°C to +125°C, allowing for reliable operation in extreme environmental conditions.

Applications

The versatility of the 74AHCT86PW-T allows it to be used in a variety of digital applications. These include:

• Binary addition systems
• Parity generators and checkers
• Control logic in microprocessor systems
• Signal processing
• Function generators

Quality and Reliability

NXP Semiconductors is committed to delivering high-quality products. The 74AHCT86PW-T is designed to meet the stringent requirements of the industrial and consumer markets, ensuring both reliability and performance. With its robust design and NXP's reputation for quality, this XOR gate IC is an excellent choice for designers looking for a dependable logic solution.
