NRF52840-QIAA-R7

Part No NRF52840-QIAA-R7
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU 802.15.4 73VFQFN / IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® 2.4GHz 73-VFQFN Dual Rows, Exposed Pad
Datasheet
NRF52840-QIAA-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard 802.15.4, Bluetooth
Protocol Bluetooth v5.0, Thread, Zigbee®
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 8dBm
Sensitivity -103dBm
Memory Size 1MB Flash, 256kB RAM
Serial Interfaces ADC, I²S, PDM, PWM, SPI, TWI, UART, USB
GPIO 48
Voltage - Supply 1.7V ~ 5.5V
Current - Receiving 4.6mA ~ 5.2mA
Current - Transmitting 4.8mA ~ 14.8mA
Mounting SMD (SMT)

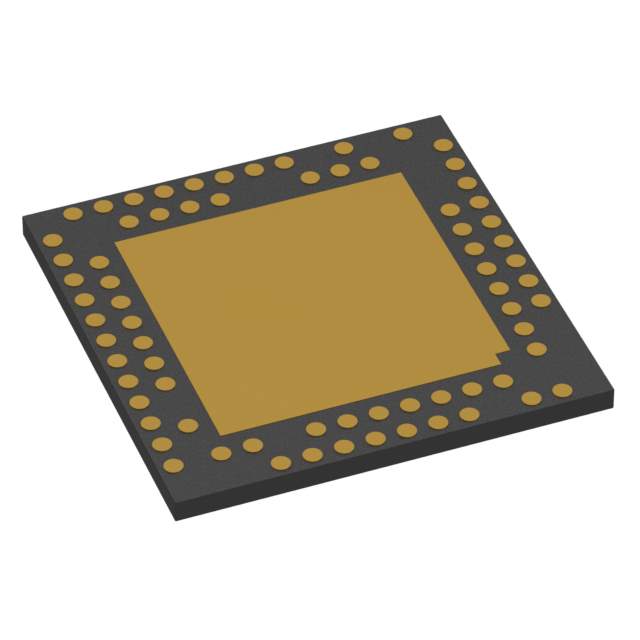

Package / Case 73-VFQFN Dual Rows, Exposed Pad
Supplier Device Package 73-QFN (7x7)
Base Product Number NRF52840
Other Names 1490-NRF52840-QIAA-R7CT,1490-NRF52840-QIAA-R7TR,1490-NRF52840-QIAA-R7DKR
Standard Package 800
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1235854-NRF52840-QIAA-R7
Ultra Librarian 3D Model Ultra Librarian NRF52840-QIAA-R7 CAD Model

Description

The NRF52840-QIAA-R7 is a powerful and highly flexible multi-protocol SoC ideal for Bluetooth Low Energy, Thread, Zigbee, and 2.4GHz ultra-low-power wireless applications.

  • Processor: 32-bit ARM Cortex-M4F processor
  • Memory: 1MB flash and 256kB RAM memory
  • GPIO: 48 GPIO pins
  • Serial Interfaces: ADC, I²S, PDM, PWM, SPI, TWI, UART, and USB
  • Voltage: 1.7V to 5.5V
  • Sensitivity: -103dBm
  • Output Power: 8dBm
  • Data Rate: 2Mbps
  • Package: 73-QFN (7x7) package
