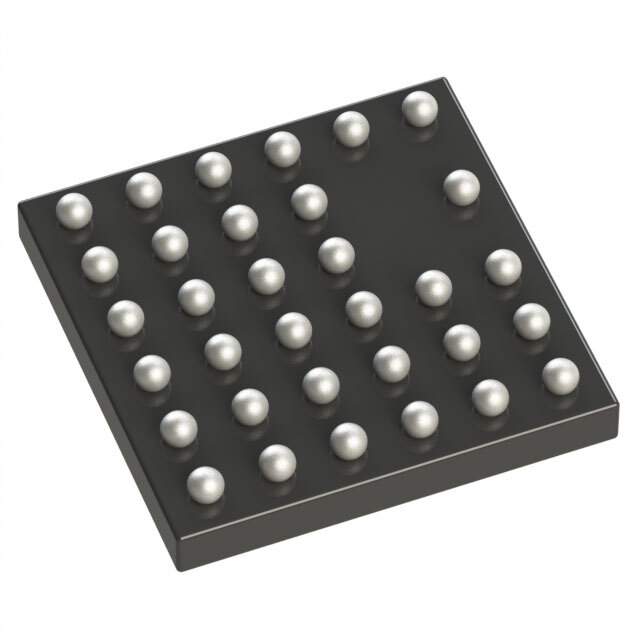

NRF52811-CAAA-R7 Real Image
Same model may have multiple batches, images only for reference.

NRF52811-CAAA-R7

Part No NRF52811-CAAA-R7
Manufacturer Nordic Semiconductors
Catalog RF Receivers
Description IC BLUETOOTH V5.1 / IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.3, Thread 2.4GHz 33-UFBGA, WLCSP
Datasheet
NRF52811-CAAA-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Nordic Semiconductor ASA
Series nRF52
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard 802.15.4, Bluetooth
Protocol Bluetooth v5.3, Thread
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 4dBm
Sensitivity -104dBm
Memory Size 192kB Flash, 24kB RAM
Serial Interfaces ADC, PDM, PWM, SPI, UART
Voltage - Supply 1.7V ~ 3.6V
Current - Receiving 4.6mA ~ 5.2mA
Current - Transmitting 4.6mA ~ 7mA
Mounting SMD (SMT)
Package / Case 33-UFBGA, WLCSP
Supplier Device Package 33-WLCSP (2.48x2.46)
Base Product Number NRF52811
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 1490-NRF52811-CAAA-R7DKR,1490-NRF52811-CAAA-R7CT,1490-NRF52811-CAAA-R7TR
Standard Package 1,500
Win Source Part Number 1124420-NRF52811-CAAA-R7
Ultra Librarian 3D Model Ultra Librarian NRF52811-CAAA-R7 CAD Model

Description

The 1124420-NRF52811-CAAA-R7 is a TxRx + MCU electronic component from Nordic Semiconductor ASA that operates at 2.4GHz frequency.

  • Protocols: Bluetooth v5.3, Thread
  • Flash Memory: 192kB
  • RAM Memory: 24kB
  • Power Output: 4dBm
  • Sensitivity: -104dBm
  • Max Data Rate: 2Mbps
  • Current (Receiving): 4.6mA to 5.2mA
  • Current (Transmitting): 4.6mA to 7mA
  • Serial Interfaces: ADC, PDM, PWM, SPI, UART
  • Package: 33-UFBGA, WLCSP
  • Voltage Range: 1.7V to 3.6V
