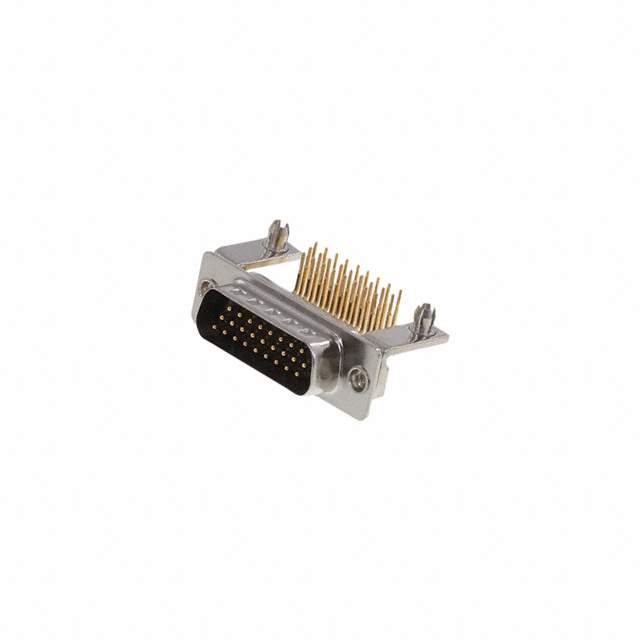

781-M26-113R141 Real Image
Same model may have multiple batches, images only for reference.

781-M26-113R141

Part No 781-M26-113R141
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD PLUG 26P R/A SLDR / 26 Position D-Sub, High Density Plug, Male Pins Connector
Datasheet
781-M26-113R141 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Seal-D 781-M
Package Tray
Connector Style D-Sub, High Density
Connector Type Plug, Male Pins
Number of Positions 26
Number of Rows 3
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A) High Density
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Backset Spacing 0.350" (8.89mm)
Features Board Lock, Grounding Indents
Color Black
Contact Form Machined
Dielectric Material Polyamide (PA6T) , Nylon 6T
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 781-M26
Standard Package 28
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1342142-781-M26-113R141
Ultra Librarian 3D Model Ultra Librarian 781-M26-113R141 CAD Model

Description

The NorComp Inc. Seal-D 781-M series D-sub connector assembly is designed for use in harsh environments.

  • Series: Seal-D 781-M
  • Number of Positions: 26
  • Density: High Density
  • Shell Size, Connector Layout: 2 (DA, A)
  • Current Rating: 5A
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Shell Material, Finish: Steel, Nickel Plated
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Ingress Protection: IP67
  • Packaging: Tray
  • Operating Temperature: -55°C ~ 105°C
  • RoHS Status: Compliant
