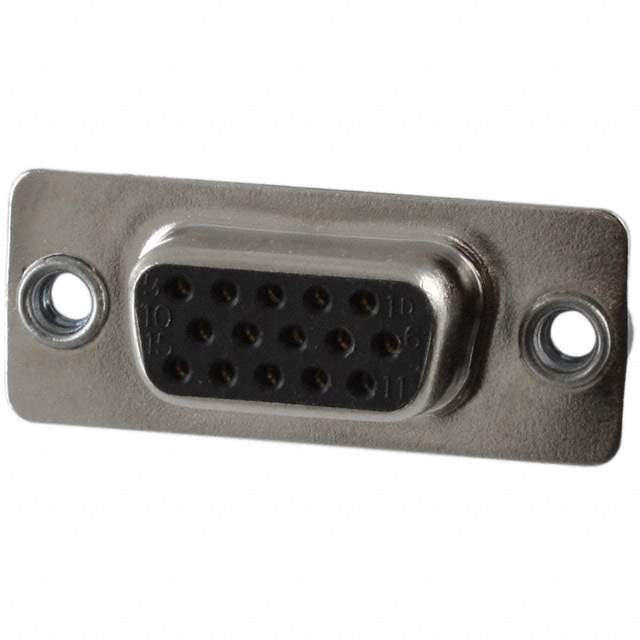

780-M15-213R011 Real Image
Same model may have multiple batches, images only for reference.

780-M15-213R011

Part No 780-M15-213R011
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 15POS PNL MNT / 15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Datasheet
780-M15-213R011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Seal-D 780-M
Package Tray
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Board Side
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Color Black
Contact Form Machined
Dielectric Material Polyamide (PA6T) , Nylon 6T
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 780-M15
Standard Package 36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338429-780-M15-213R011
Ultra Librarian 3D Model Ultra Librarian 780-M15-213R011 CAD Model

Description

The NorComp Seal-D 780-M15-213R011 is a D-sub connector assembly with 15 positions.

  • Positions: 15
  • Color: Black
  • Connector Type: Receptacle with Female Sockets
  • Contact Finish: Gold with Flash Finish Thickness
  • Machined/Stamped: Machined
  • Style: High Density D-Sub
  • Ingress Protection: IP67
  • Flange Feature: Board Side
  • Shell Material: Steel with Nickel-Plated Finish
  • Dielectric Material: Polyamide (PA6T) and Nylon 6T
  • Mounting: Panel Mount and Through-Hole
  • Temperature Range: -55°C to 105°C
