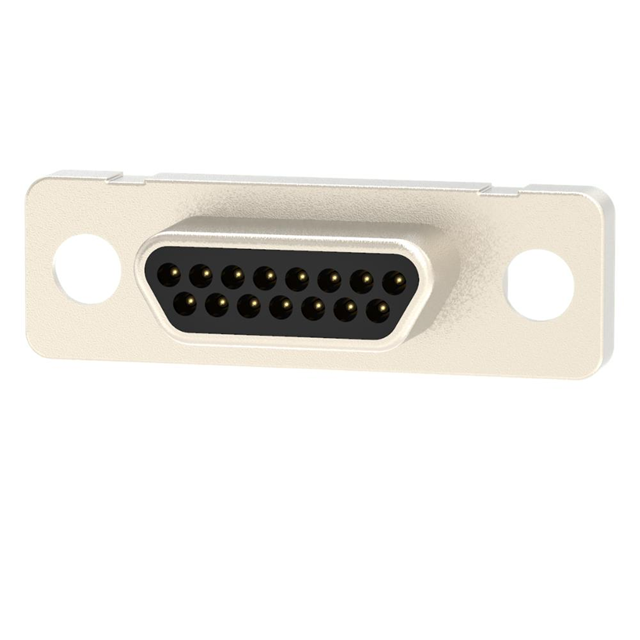

580-M15-103L001 Real Image
Same model may have multiple batches, images only for reference.

580-M15-103L001

Part No 580-M15-103L001
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN MICRO-D MALE 15P SC 15U" / 15 Position D-Type, Micro-D Plug, Male Pins Connector
Datasheet
580-M15-103L001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 580
Package Tray
Connector Style D-Type, Micro-D
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 0.050 Pitch x 0.043 Row to Row
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Zinc Alloy, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 15.0µin (0.38µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 2A
Features Shielded
Voltage Rating 60VDC
Color Black
Contact Form Machined
Dielectric Material Liquid Crystal Polymer (LCP)
Wire Gauge 26 AWG
Contact Material Brass
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 580-M15
Standard Package 90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1341184-580-M15-103L001
Ultra Librarian 3D Model Ultra Librarian 580-M15-103L001 CAD Model

Description

The NorComp Inc. 580 series D-sub connector assembly is a high-quality shielded connector that is perfect for use in a wide range of applications.

  • Number of Positions: 15
  • Color: Black
  • Connector Type: Plug, Male Pins
  • Contact Type: Signal
  • Number of Rows: 2
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Insulator Material: Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Shell Material, Finish: Zinc Alloy, Nickel Plated
  • Operating Temperature: -40°C to 125°C
  • Current Rating (Amps): 2A
  • Shielded: Yes
