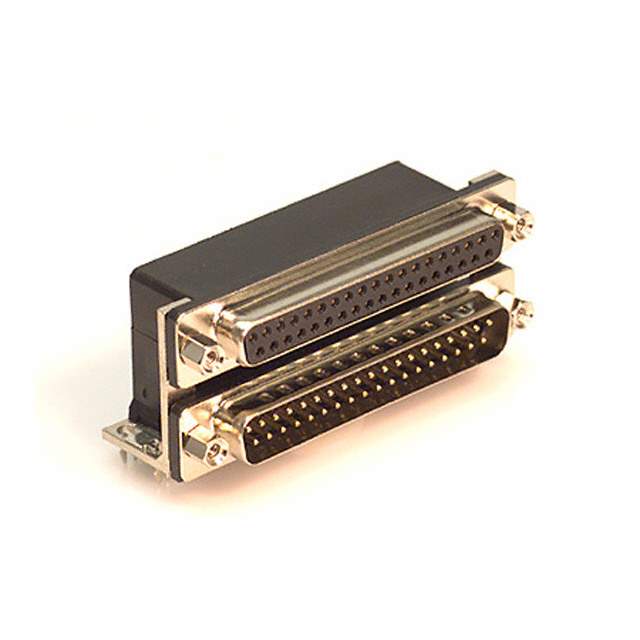

The 1341095-189-037-313R571 connector assembly from NorComp Inc. is a D-Sub connector that features 37 positions and a black color.

• Connector Type: D-Sub
• Positions: 37
• Color: black
• Features: board lock, grounding indents, shielded
• Connector Type: plug male pins and receptacle female sockets
• Contact Type: signal
• Rows: 2
• Termination: solder
• Contact Finish: gold with a flash thickness
• Package: tray
• Contact Form: stamped
• Wire Gauge: not specified
• Contact Material: brass
• Connector Style: D-Sub stacked
• Ingress Protection: not specified
• Material Flammability Rating: UL94 V-0
• Standard Package: 20
• Flange Feature: mating side and female screwlock (4-40)
• Shell Material: steel with a nickel-plated finish
• Dielectric Material: polyamide (PA9T) and nylon 9T
• Shell Size and Connector Layout: 4 (DC, C) and 4 (DC, C)
• Mounting Type: panel mount, through hole, right angle
• Operating Temperature: -55°C to 105°C
