Same model may have multiple batches, images only for reference.

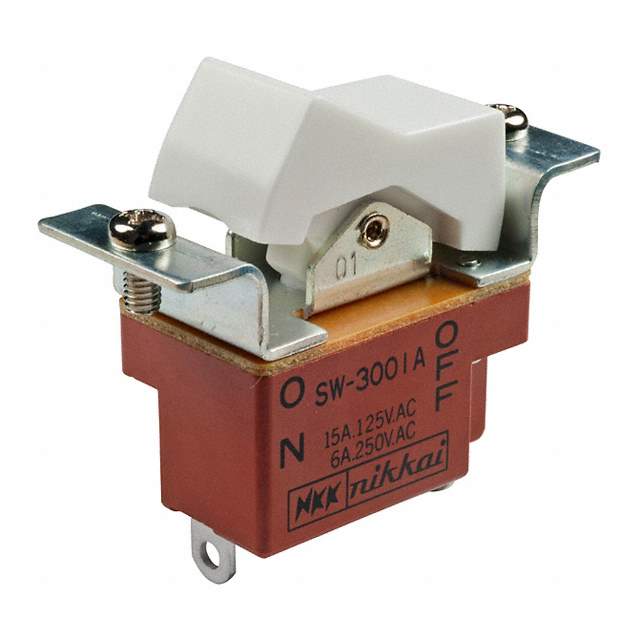

SW3001A Real Image
Same model may have multiple batches, images only for reference.

SW3001A

Part No SW3001A
Manufacturer NKK Switches
Catalog Rocker Switches
Description SWITCH ROCKER SPST 15A 125V
Datasheet
SW3001A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Packaging Bulk
Status Active
Circuit SPST
Switch Function On-Off
Current Rating 15A (AC/DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Concave (Standard V)
Color - Actuator/Cap White
Actuator Marking No Marking
Mounting Panel Mount, Flange
Termination Style Solder Lug
Temperature Range - Operating -10°C to 70°C
Mechanical Life 50,000 Cycles
Electrical Life 25,000 Cycles
Win Source Part Number 1104158-SW3001A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SW3001A CAD Model

Description

The supply and demand status of this component is balanced.

  • Termination Style: Solder Lug
  • Current Rating: 15A (AC/DC)
  • Voltage Rating - AC: 125V
  • Voltage Rating - DC: 30V
  • Circuit: SPST
  • Switch Function: On-Off
  • Actuator Type: Concave (Standard V)
  • Actuator/Cap Color: White
