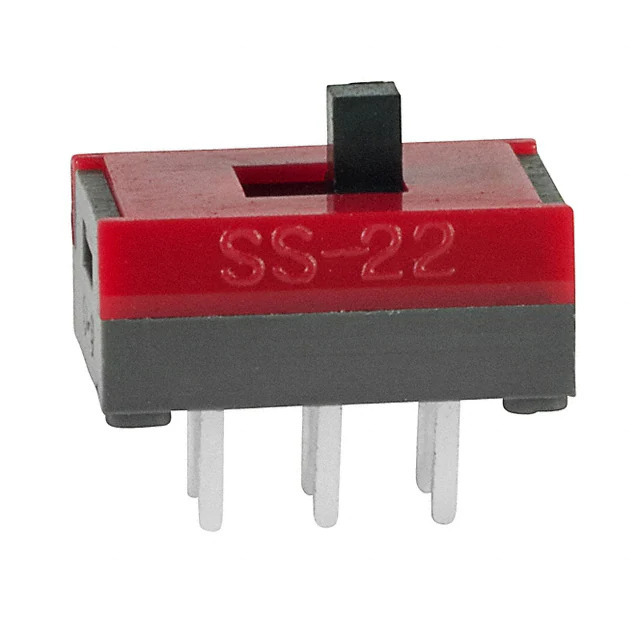

SS22SDP2 NKK Switches
Same model may have multiple batches, images only for reference.

SS22SDP2

Part No SS22SDP2
Manufacturer NKK Switches
Catalog Slide Switches
Description SWITCH SLIDE DPDT 100MA 30V
Datasheet
SS22SDP2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr NKK Switches
Series SS
Package Tray
Product Status Active
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Phosphor Bronze
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features -
Temperature Range - Operating -15°C ~ 60°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.00mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Operating Force -
Base Product Number SS22SD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376247-SS22SDP2
Ultra Librarian 3D Model Ultra Librarian SS22SDP2 CAD Model

Description

The SS22SDP2 is a through-hole slide switch from NKK Switches.

  • Series: SS
  • Base Product Number: SS22SD
  • Voltage Rating: 30V DC
  • Current Rating: 100mA
  • Circuit: DPDT
  • Switch Function: On-On
  • Mounting: Panel Mounting
  • Termination: PC Pin
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 10,000 Cycles
  • Actuator Type: Standard
  • Actuator Material: Polyamide (PA) and Nylon
  • Switch Travel: 2.00mm
  • Actuator Length: 2.00mm
