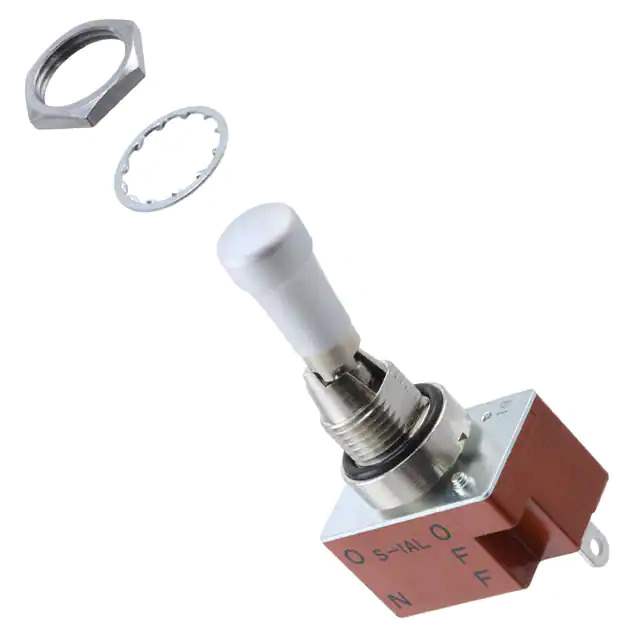

S1AL Real Image
Same model may have multiple batches, images only for reference.

S1AL

Part No S1AL
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPST 15A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series S
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 15A (AC), 20A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Locking Lever
Actuator Length 23.50mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 662295-S1AL
Ultra Librarian 3D Model Ultra Librarian S1AL CAD Model

Description

The S series toggle switch is a high-quality component designed for various applications.

  • Circuit Configuration: SPST
  • Voltage Rating: 125V AC and 30V DC
  • Standard Package: 1 piece
  • Mounting Type: Panel-mounted
  • Panel Cutout Diameter: 12.50mm
  • Actuator: Locking lever, brass with chrome plating
  • Ingress Protection: IP67 (dust-tight and waterproof)
  • Illumination: Non-illuminated
  • Manufacturer: NKK Switches
  • Operating Temperature: -30°C to 70°C
