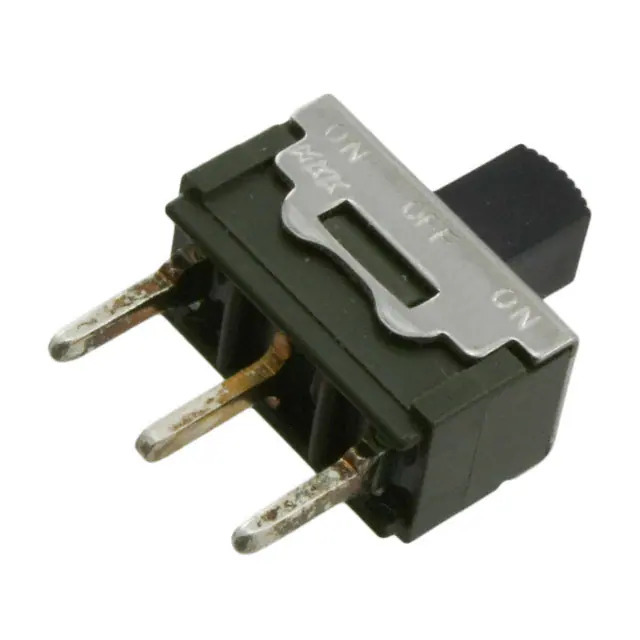

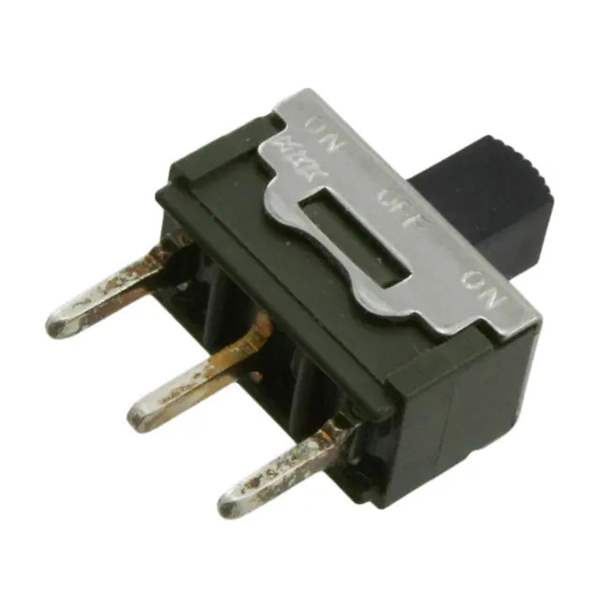

MS13ANW03 NKK Switches
Same model may have multiple batches, images only for reference.

MS13ANW03

Part No MS13ANW03
Manufacturer NKK Switches
Catalog Slide Switches
Description SWITCH SLIDE SPDT 6A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr NKK Switches
Series MS
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-Off-On
Current Rating (Amps) 6A (AC)
Voltage Rating - AC 125 V
Actuator Type Standard
Actuator Length 5.10mm
Contact Material Silver Alloy
Contact Finish Silver
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Polybutylene Terephthalate (PBT), Glass Filled
Switch Travel 3.50mm
Mechanical Life 100,000 Cycles
Electrical Life 25,000 Cycles
Operating Force -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376327-MS13ANW03
Ultra Librarian 3D Model Ultra Librarian MS13ANW03 CAD Model

Description

The MS13ANW03 is a SPDT slide switch from NKK Switches.

  • Current Rating (AC): 6A
  • Voltage Rating (AC): 125 V AC
  • Temperature Range: -30°C to 85°C
  • Terminals: Epoxy Sealed
  • Actuator Type: Standard
  • Switch Function: On-Off-On
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 25,000 cycles
  • Actuator Material: Polybutylene Terephthalate (PBT), glass filled
  • Actuator Length: 5.10mm
  • Contact Finish: Silver Alloy
  • Contact Material: Silver Alloy
