Same model may have multiple batches, images only for reference.

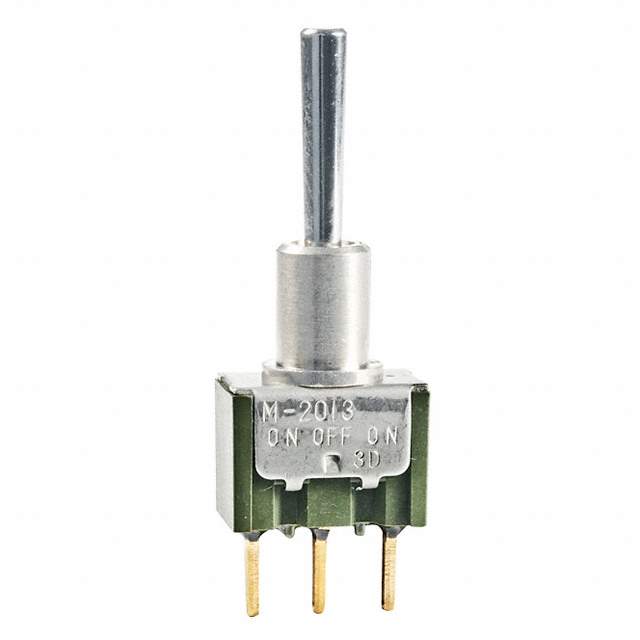

M2013QS2G03 Real Image
Same model may have multiple batches, images only for reference.

M2013QS2G03

Part No M2013QS2G03
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 28V / Toggle Switch SPDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr NKK Switches
Series M
Package Tray
Mounting Type Through Hole
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 14.00mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 50,000 Cycles
Base Product Number M2013QS
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Standard Package 1
Win Source Part Number 1116343-M2013QS2G03
Ultra Librarian 3D Model Ultra Librarian M2013QS2G03 CAD Model

Description

The M2013QS2G03 is a switch from NKK Switches that belongs to the M series.

  • Circuit: SPDT
  • Switch Function: On-Off-On
  • Actuator Type: standard round
  • Actuator Length: 14.00mm
  • Electrical Life: 50,000 cycles
  • Current Rating: 0.4VA (AC/DC)
  • Illumination: not illuminated
  • Ingress Protection: -
  • Temperature Range: -30°C to 85°C
  • REACH: unaffected
  • ECCN: EAR99
