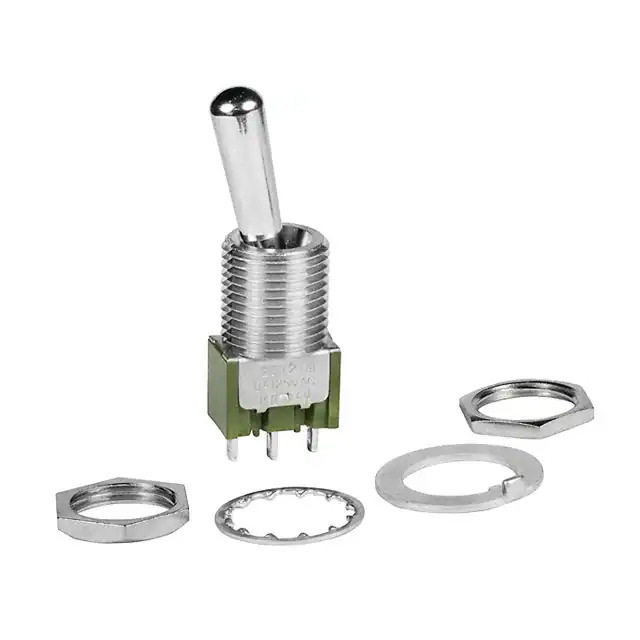

M2012B2B1W01 NKK Switches
Same model may have multiple batches, images only for reference.

M2012B2B1W01

Part No M2012B2B1W01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 6A 125V / Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series M
Package Bulk
Product Status Last Time Buy
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number M2012B2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376001-M2012B2B1W01
Ultra Librarian 3D Model Ultra Librarian M2012B2B1W01 CAD Model

Description

The M2012B2B1W01 is a toggle switch from NKK Switches' M series.

  • Series: M
  • Mounting Type: Panel Mount
  • Circuit: SPDT
  • Current Rating: 6A (AC), 4A (DC)
  • Voltage Rating: 125 V (AC), 30 V (DC)
  • Temperature Range: -30°C to 85°C
  • Terminals: Epoxy Sealed
  • Actuator Type: Standard Round
  • Panel Cutout Dimension: 12.50mm Diameter
  • Actuator Length: 17.50mm
  • Electrical Life: 25,000 Cycles
  • REACH: Compliant
  • ECCN: EAR99
  • Illumination: Non-Illuminated
