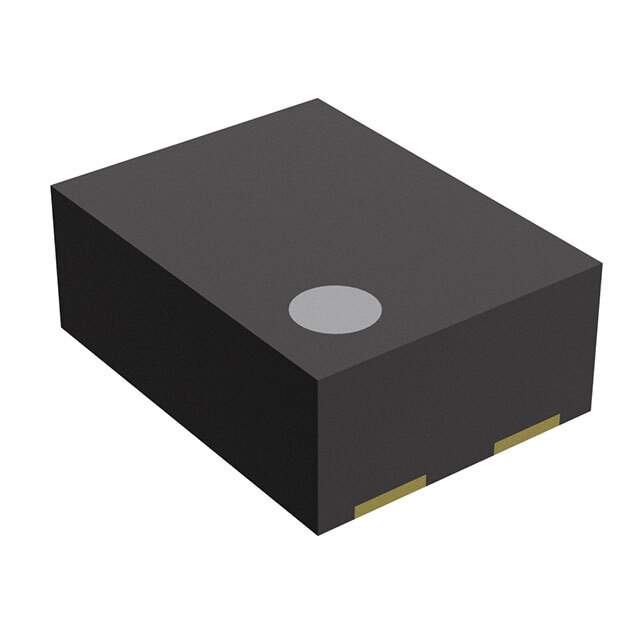

RP101K281B-TR Real Image
Same model may have multiple batches, images only for reference.

RP101K281B-TR

Part No RP101K281B-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 2.8V 300MA DFN1612-4 / Linear Voltage Regulator IC Positive Fixed 1 Output 300mA DFN(PLP)1612-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP101x
Package Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 2.8V
Voltage Dropout (Max) 0.23V @ 150mA
Current - Output 300mA
Current - Quiescent (Iq) 25 µA
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-UDFN Exposed Pad
Supplier Device Package DFN(PLP)1612-4
Base Product Number RP101
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 5,000
Win Source Part Number 972671-RP101K281B-TR
Ultra Librarian 3D Model Ultra Librarian RP101K281B-TR CAD Model

Description

The RP101x series from Nisshinbo Micro Devices Inc. is a voltage regulator IC with a fixed positive output configuration.

  • Output Current: 300mA (max)
  • Voltage Input: up to 5.25V
  • Enable Control: yes
  • Output Voltage: 2.8V (fixed)
  • Over-Current Protection: yes
  • Temperature Range: -40°C to 85°C
  • Package: 4-UDFN exposed pad
  • Quiescent Current: 25 µA
  • Voltage Dropout: 0.23V @ 150mA
