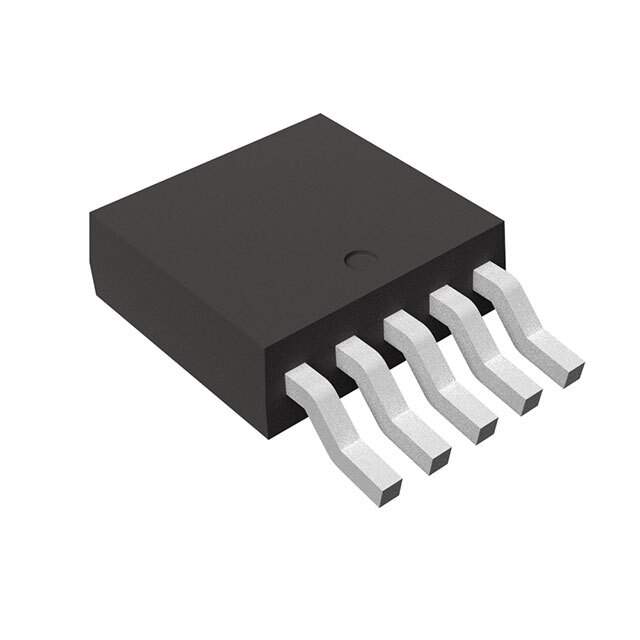

R1501J090B-T1-FE Real Image
Same model may have multiple batches, images only for reference.

R1501J090B-T1-FE

Part No R1501J090B-T1-FE
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 9V 1A TO252-5-P2 / Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-5-P2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series R1501x
Package Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 24V
Voltage - Output (Min/Fixed) 9V
Voltage Dropout (Max) 0.775V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 160 µA
PSRR 50dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Package / Case TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package TO-252-5-P2
Base Product Number R1501
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1218927-R1501J090B-T1-FE
Ultra Librarian 3D Model Ultra Librarian R1501J090B-T1-FE CAD Model

Description

The Nisshinbo Micro Devices Inc. R1501J090B-T1-FE is a linear voltage regulator designed for use in integrated circuits.

  • Output Type: Fixed
  • Output Current: Up to 1A
  • Voltage Input: Up to 24V
  • Voltage Output: 9V
  • Package: Tape and reel
  • Mounting: Surface mountable.
