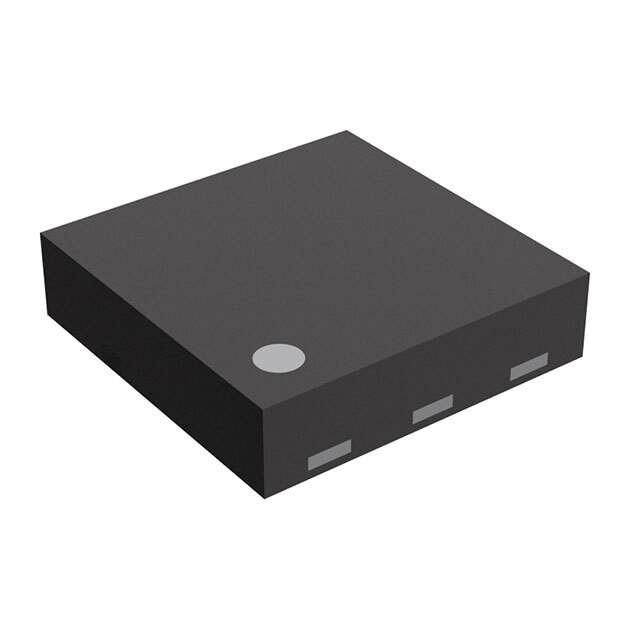

R1154L030B-TR Real Image
Same model may have multiple batches, images only for reference.

R1154L030B-TR

Part No R1154L030B-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3V 150MA DFN1616-6 / Linear Voltage Regulator IC Positive Fixed 1 Output 150mA DFN1616-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series R1154x
Package Tape & Reel
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 24V
Voltage - Output (Min/Fixed) 3V
Voltage Dropout (Max) 0.4V @ 20mA
Current - Output 150mA
Current - Quiescent (Iq) 10 µA
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting SMD (SMT)
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package DFN1616-6
Base Product Number R1154
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2129-R1154L030B-DKR,2129-R1154L030B-CT,2129-R1154L030B-TR
Standard Package 5,000
Win Source Part Number 978131-R1154L030B-TR
Ultra Librarian 3D Model Ultra Librarian R1154L030B-TR CAD Model

Description

The R1154x series voltage regulators are designed by Nisshinbo Micro Devices Inc. for use in Integrated Circuits (ICs) and PMIC applications.

  • Part Number: 978131-R1154L030B-TR
  • Output Type: Fixed
  • Output Configuration: Positive
  • Voltage Input Max: 24V
  • Voltage Output: 3V (min/fixed)
  • Current Output: 150mA
  • Quiescent Current: 10 µA
  • Package: 6-XFDFN Exposed Pad
  • Protection Features: Overcurrent and overtemperature
  • Market Status: Open
  • Features: Enable control
