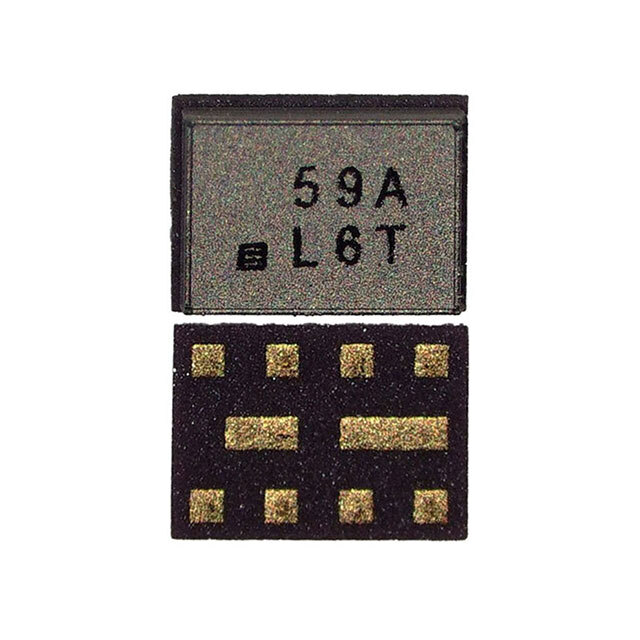

Same model may have multiple batches, images only for reference.
NJG1159PHH-A-TE1 Nisshinbo Micro Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NJG1159PHH-A-TE1

Part No NJG1159PHH-A-TE1
Manufacturer Nisshinbo Micro Devices Inc.
Catalog RF Front End (LNA + PA)
Description RF Front End BeiDou, Galileo, GLONASS, GNSS, GPS 10-HFFP-HH (1.5x1.1)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nisshinbo Micro Devices Inc.
Packaging Reel - TR
RF Type BeiDou, Galileo, GLONASS, GNSS, GPS
Features 2.8V Supply Voltage
Grade Automotive
Qualification AEC-Q100
Package / Case 10-UFDFN Module
Supplier Device Package 10-HFFP-HH (1.5x1.1)
Base Product Number NJG1159
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0060
Win Source Part Number 1477875-NJG1159PHH-A-TE1
Ultra Librarian 3D Model Ultra Librarian NJG1159PHH-A-TE1 CAD Model
