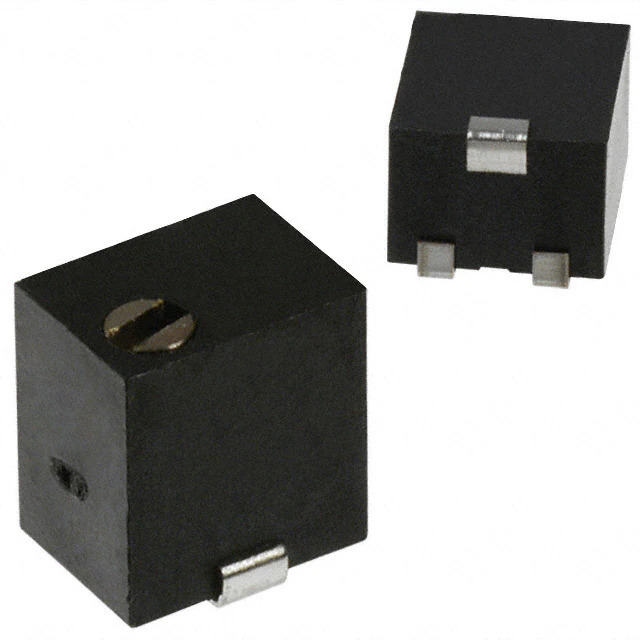

SM-42TW503 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

SM-42TW503

Part No SM-42TW503
Manufacturer Nidec Copal Electronics
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.25W J LEAD TOP
Datasheet
SM-42TW503 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Nidec Components Corporation
Series SM42
Package Tape & Reel
Product Status Active
Resistance 50 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375027-SM-42TW503
Ultra Librarian 3D Model Ultra Librarian SM-42TW503 CAD Model

Description

The SM-42TW503 is a surface mount trimmer potentiometer from Nidec Components Corporation's SM42 series.

  • Resistance: 50 kOhms
  • Power Rating: 0.25W
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Adjustment: Top Adjustment
  • REACH: Unaffected
  • Package: Tape and Reel
  • Turns: 11
  • Termination Style: J Lead
  • Resistive Material: Cermet
  • Product Status: Active
