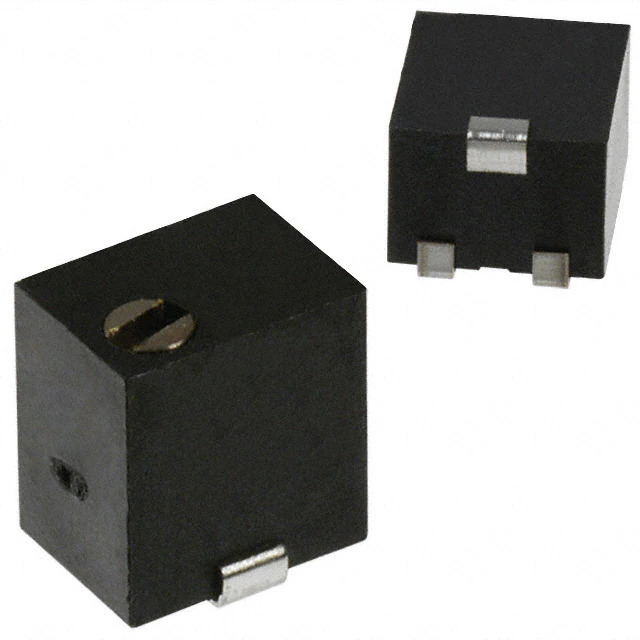

Same model may have multiple batches, images only for reference.
SM-42TW502 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

SM-42TW502

Part No SM-42TW502
Manufacturer Nidec Copal Electronics
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W J LEAD TOP
Datasheet
SM-42TW502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Nidec Components Corporation
Series SM42
Package Tape & Reel
Product Status Active
Resistance 5 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375028-SM-42TW502
Ultra Librarian 3D Model Ultra Librarian SM-42TW502 CAD Model

Description

The 1375028-SM-42TW502 is a trimmer potentiometer with a resistance of 5 kOhms and a power rating of 0.25W.

  • Resistance: 5 kOhms
  • Power Rating: 0.25W
  • Tolerance: ±10%
  • Temperature Coefficient: ±100ppm/°C
  • Turns: 11
  • Mounting Type: Surface Mountable
  • Size: 0.189" x 0.138" face (4.80mm x 3.50mm)
  • Product Status: Active
  • Series: SM42 from Nidec Components Corporation
