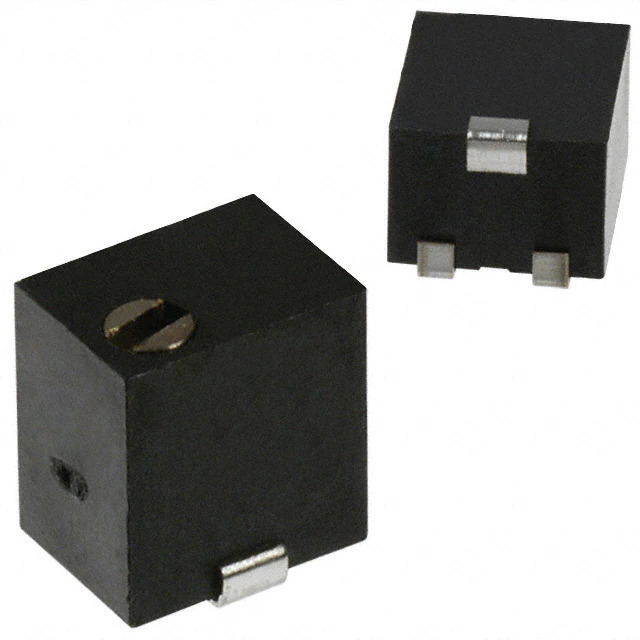

Same model may have multiple batches, images only for reference.

SM-42TW101

Name: SM-42TW101
Brand: Nidec Copal Electronics
SKU: 1375085
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SM-42TW101
Manufacturer	Nidec Copal Electronics
Catalog	Trimmer Potentiometers
Description	TRIMMER 100 OHM 0.25W J LEAD TOP
Datasheet	SM-42TW101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Nidec Components Corporation
Series	SM42
Package	Tape & Reel
Product Status	Active
Resistance	100 Ohms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	11
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Surface Mount
Termination Style	J Lead
Size / Dimension	Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8050
Win Source Part Number	1375085-SM-42TW101
Ultra Librarian 3D Model	Ultra Librarian SM-42TW101 CAD Model

Description

The SM42TW101 is a surface mount trimmer potentiometer from Nidec Components Corporation.

Series: SM42
Size Dimension: 0.189" x 0.138" face
Resistance: 100 Ohms
Power Rating: 0.25W
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Turns: 11
Adjustment: Top
Termination Style: J Lead
Mounting: Tape and Reel
