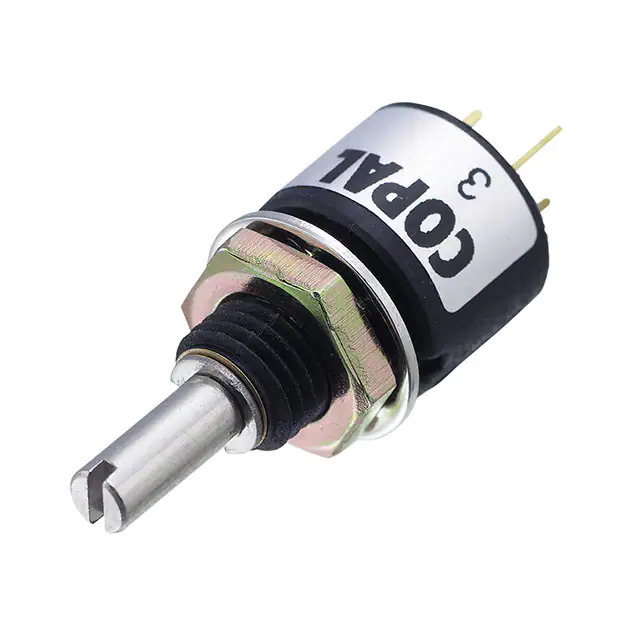

Same model may have multiple batches, images only for reference.

JC10-000-103N

Name: JC10-000-103N
Brand: Nidec Copal Electronics
SKU: 1375090
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JC10-000-103N
Manufacturer	Nidec Copal Electronics
Catalog	Rotary Potentiometers, Rheostats
Description	POT 10K OHM 1/8W PLASTIC LINEAR
Datasheet	JC10-000-103N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr	Nidec Components Corporation
Series	JC10
Package	Bulk
Product Status	Active
Resistance (Ohms)	10k
Tolerance	±20%
Power (Watts)	0.125W, 1/8W
Built in Switch	None
Number of Turns	1
Features	Long Life
Taper	Linear
Number of Gangs	1
Adjustment Type	Top Adjustment
Temperature Coefficient	±400ppm/°C
Rotation	Continuous
Resistive Material	Conductive Plastic
Termination Style	PC Pins
Actuator Type	Slotted
Actuator Length	0.591" (15.00mm)
Actuator Diameter	0.118" (3.00mm)
Bushing Thread	M6 x 0.75
Mounting Type	Panel Mount
Size - Body	Round - 0.394" Dia (10.00mm)
Base Product Number	JC10-000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1375090-JC10-000-103N
Ultra Librarian 3D Model	Ultra Librarian JC10-000-103N CAD Model

Alternative Products

Description

The JC10-000-103N is a rotary potentiometer from Nidec Components Corporation.

Resistance: 10k ohms
Tolerance: ±20%
Power Rating: 0.125W
Taper: Linear
Type: Single-Turn
Actuator Type: Slotted
Termination Style: PC Pin
Mount: Panel Mount
Bushing Thread: M6 x 0.75
Diameter: 0.394"
Actuator Length: 0.591"
Series: JC10
Packaging: Bulk
Status: Active
Features: Long Life
Used in: Applications that require variable resistance
