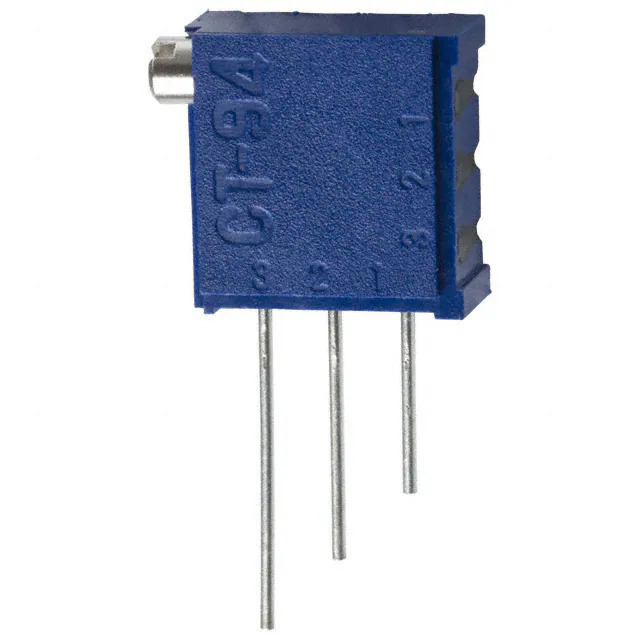

Same model may have multiple batches, images only for reference.

CT-94EX502

Name: CT-94EX502
Brand: Nidec Copal Electronics
SKU: 1375077
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CT-94EX502
Manufacturer	Nidec Copal Electronics
Catalog	Trimmer Potentiometers
Description	TRIMMER 5K OHM 0.5W PC PIN SIDE
Datasheet	CT-94EX502 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Nidec Components Corporation
Series	CT94
Package	Bulk
Product Status	Active
Resistance	5 kOhms
Power (Watts)	0.5W, 1/2W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	18
Adjustment Type	Side Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Size / Dimension	Rectangular - 0.378" x 0.189" Face (9.60mm x 4.80mm)
Base Product Number	CT94EX
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8050
Win Source Part Number	1375077-CT-94EX502
Ultra Librarian 3D Model	Ultra Librarian CT-94EX502 CAD Model

Alternative Products

Description

The CT94EX502 is a trimmer potentiometer from Nidec Components Corporation.

Resistance: 5 kOhms
Power Rating: 0.5W
Tolerance: ±10%
Temperature Coefficient: ±100ppm/°C
Turns: 18 Turns
Adjustment: Side Adjustment
Resistive Material: Cermet
Termination: PC Pins
Size: 0.378" x 0.189" face (9.60mm x 4.80mm)
Mounting: Through-Hole
REACH: Unaffected
Series: CT94
Applications: Audio Equipment, Instrumentation, Communication Devices
