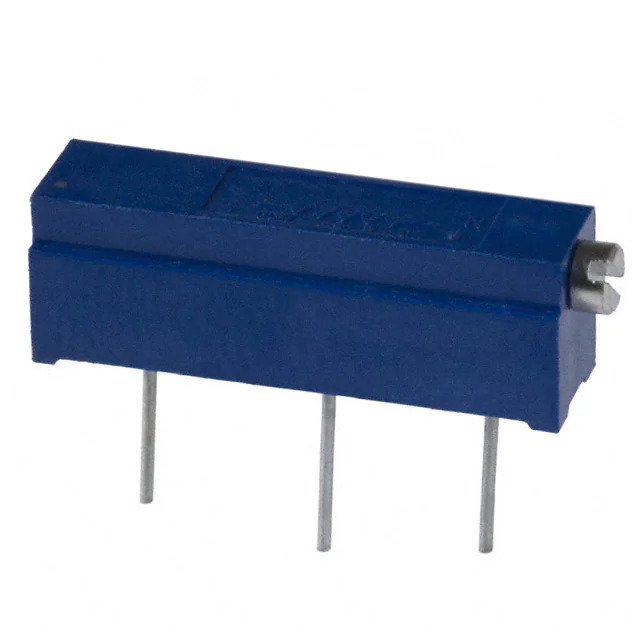

Same model may have multiple batches, images only for reference.
CT-20EP503 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CT-20EP503

Part No CT-20EP503
Manufacturer Nidec Copal Electronics
Catalog Trimmer Potentiometers
Description TRIMMER 50K OHM 0.5W PC PIN SIDE
Datasheet
CT-20EP503 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Nidec Components Corporation
Series CT20
Package Bulk
Product Status Active
Resistance 50 kOhms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 15
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.252" x 0.197" Face (6.40mm x 5.00mm)
Base Product Number CT20EP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375055-CT-20EP503
Ultra Librarian 3D Model Ultra Librarian CT-20EP503 CAD Model

Description

The CT20EP503 is a trimmer potentiometer manufactured by Nidec Components Corporation.

  • Series: CT20
  • Mounting Type: Through Hole
  • Resistance: 50 kOhms
  • Tolerance: ±10%
  • Power Rating: 0.5W
  • Turns: 15
  • Resistive Material: Cermet
  • Temperature Coefficient: ±100ppm/°C
  • Size: 0.252" x 0.197" (6.40mm x 5.00mm)
